The dense and compact HPE ProLiant DL20 Gen10 Server powered by Intel® Xeon® E Processor, Pentium and Core i3 processors provides a unique blend of enterprise class capabilities & value. It offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point. Deploy this dense platform for diverse workloads in space constrained environments and maintain it with ease by automating the most essential server lifecycle management tasks with HPE iLO 5.

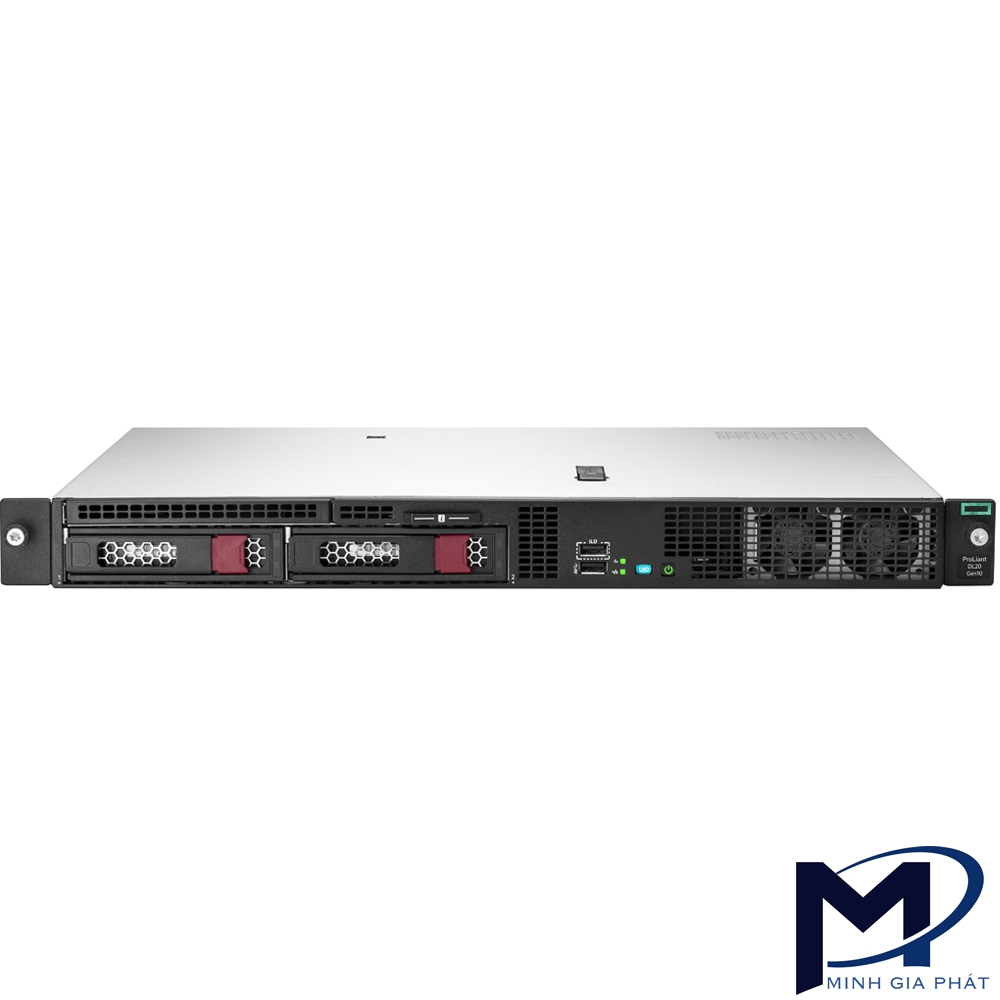

2 LFF Front View

1.

Access Panel

7.

Health LED

2.

Optical drive bay

8.

NIC Status LED

3.

Serial number/iLO information pull tab

9.

USB 3.0 Port

4.

Front Fan Assembly

10.

iLO Service Port (USB)

5.

System Power LED

11.

Two-bay LFF hot-plug drive bays

6.

UID LED

4 (+2) SFF Front View

1.

Access Panel

7.

Health LED

2.

2 SFF hot plug drive bays (optional)

8.

NIC Status LED

3.

Serial number/iLO information pull tab

9.

USB 3.0 Port

4.

Front Fan Assembly

10.

iLO Service Port (USB)

5.

System Power LED

11.

4 SFF hot plug drive bays

6.

UID LED

Internal View - Standard for all DL20 Gen10

1.

Fan cage shown with 2 fans

7.

Optional Smart Storage Battery

2.

Processor shown with heat sink

8.

Modular Smart Array connector

3.

Four DDR4 DIMM Slots

9.

Optional TPM 2.0

4.

System Battery

10.

PCIe Riser

5.

Central fan assembly (3^rd fan)

11.

Option: Dedicated iLO/M.2 SSD

6.

Power Supply (1x290W)

Rear View – Standard for all DL20 Gen10

1.

Slot 1 PCIe 3.0

6.

Two USB 3.0 Ports

2.

Slot 2 PCIe 3.0

7.

NIC Port (1Gb)

3.

Option: Serial Port

8.

NIC port (1Gb) /iLo port

4.

290W Non hotplug Power Supply

9.

VGA port

5.

UID LED

10.

Option: Dedicated iLO Management Port

What’s New

• Supports latest Intel® Xeon® E-2200 processors up to 8 cores and ^9th Gen Core™ i3 and Pentium® G processors and 2666MHz UDIMM with support for Intel® Software Guard Extensions. Intel® SGX is an architecture extension designed to increase the security of application code and data.
• HPE 361i 1Gb 2-Port network adapter on models with Intel Xeon E-2200, i3-9300 and G5420Storage
• Enhancements in the form of increased capacity of up to 6 SFF drives & M.2 SSDs for boot
• Dedicated iLO Management Port as an option kit for faster and more secure data transmission
• More choice of Power Supplies with 500W 94% efficiency and 800W 48VDC 96% efficiency Flex Slot Redundant Power Supplies
• Warranty increased from 1yr to 3yrs (parts, labor & Onsite support)

Platform Information

Form Factor

1U rack

Chassis Types

• 4 SFF with options supporting: +2 SFF
• 2 LFF Hot Plug
• 2 LFF Non Hot Plug

System Fans

Includes 3 standard single rotor non-hot plug and non-redundant fans

NOTE: This applies for all three chassis: 2LFF NHP, 2LFF HP and 4SFF HP

Processors – Intel® Xeon® processor E-Series processor family is designed to deliver the best combination of performance, built-in capabilities, and cost-effectiveness. The product also supports Intel® Pentium® and Intel® Core-i3 dual core processors. Choose one of the following processors based on the model.

NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

NOTE: This table covers the public offering only.

Chipset

Intel® C242 Chipset

NOTE: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/.

On System Management Chipset

HPE iLO 5 ASIC

NOTE: Read and learn more in the iLO QuickSpecs.

Memory

• Type

- HPE DDR4 Unbuffered (UDIMM)

• DIMM Slots Available

- 4  (4 DIMM slots per processor, 2 channels per processor,2 DIMMs per channel)

• Maximum capacity (UDIMM)

- 64 GB  (4 x 16 GB UDIMM @ 2666 MT/s)

NOTE: For General Server Memory and DIMM Population Rules and Guidelines for Gen10 see details here:

http://www.hpe.com/docs/memory-population-rules.

Memory Protection

ECC

Network Controller

• HPE Ethernet 1Gb 2-port 361i network Adapter (Intel i350)
• HPE Ethernet 1Gb 2-port 332i network Adapter ( BCM5720).

The HPE ProLiant DL20 Gen10 server offers the customer a dual-port NIC standard with the option to upgrade with a variety of networking options.

NOTE: ProLiant DL20 Gen10 with Intel Xeon E-2200 processors system embedded with Intel i350 (LOM) and DL20 Gen10 with E-2100 processors system embedded with BCM5720 (LOM).

NOTE: ProLiant DL20 Gen10 with Intel Xeon E processors system do not support  Networking SR-IOV.

Expansion Slots

NOTE: This riser is mandatory for installing FlexibleLOMs.

NOTE: Bus Width indicates the number of physical electrical lanes running to the connector.

Storage Controllers

Software RAID

HPE Smart Array S100i SR Gen10 SW RAID

NOTE: HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.

NOTE: HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled by selecting 784308-B21.

NOTE: The S100i is a 14-port SATA controller, but only 12 ports are accessible as 2 are leveraged to support the 2 M.2 options on the Primary Riser.

NOTE: The S100i supports windows only.

NOTE: For Linux users, HPE offers a solution that uses in-distro open-source software to create a two-disk RAID 1 boot volume. For more information visit: https://downloads.linux.hpe.com/SDR/project/lsrrb/

Essential RAID Controllers

• HPE Smart Array E208i-a SR G10 LH Controller
• HPE Smart Array E208e-p SR Gen10 Controller

Performance RAID Controllers

• HPE Smart Array P408i-a SR G10 LH Controller
• HPE Smart Array P408e-p SR Gen10 Controller

NOTE: For additional details, please see HPE Smart Array Gen10 Controllers Data Sheet.

Internal Storage Devices

Optical Drive

• Available on 4 SFF and 2 LFF CTO Servers as an option (DVD-ROM or DVD-RW)

Hard Drives

• None ship standard

Power Supply

• HPE 290W FIO Power Supply

NOTE: Available in 92% efficiency.

• HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% efficiency.

• HPE 800W Flex Slot -48VDC Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Flex Slot -48VDC power supplies support power efficiency of up to 94%.

Power Supply

HPE Entry-Level Power Supplies provide lower-cost options for customers trying to balance their need for enterprise class efficiency and reliability while maintaining lowest possible hardware costs.  The above mentioned Entry-Level power supply options have been designed specifically for HPE ProLiant DL20 Gen10 Server.

The HPE 290W FIO Power Supply is the standard, non-redundant AC power supply with 80Plus Silver Certification.  It features 92% power efficiency with a set of features optimized for the DL20 Gen10 rack server.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cablesweb page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

Interfaces

Operating Systems and Virtualization Software

• Windows Server 2019
• Windows Server 2016 (Most Recent Version)
• VMware vSphere 6.7 and 6.5 U3

NOTE: VMware support is available on Intel Xeon E-Series processors only.

• Red Hat Enterprise Linux (RHEL) 7.6 and 8.0
• SUSE Linux Enterprise Server (SLES) 15  and 12 SP3
• ClearOS/VM 7.5

NOTE: ClearOS allows you to build a fully functional server that is just right for you at no upfront cost. For more information on ClearOS, please visit http://www.hpe.com/servers/clearos.

• CentOS 7.5

NOTE: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server

http://www.hpe.com/info/ossupport

Industry Standard Compliance

• ACPI 6.1 Compliant
• PCIe 3.0 Compliant
• WOL Support
• Microsoft® Logo certifications
• PXE Support
• USB 3.0 Compliant
• USB 2.0 Compliant
• SMBIOS 3.1
• UEFI 2.6 (Unified Extensible Firmware Interface Forum)
• Redfish API
• IPMI 2.0
• Secure Digital 4.0
• TPM 1.2 and 2.0 support
• Advanced Encryption Standard (AES)
• Triple Data Encryption Standard (3DES)
• SNMP v3
• TLS 1.2
• DMTF Systems Management Architecture for Server Hardware Command Line (SMASH CLP)
• Active Directory v1.0
• ASHRAE A3/A4
• Energy Star

NOTE: For additional technical thermal details regarding ambient temperatures, humidity and features support please visit: http://www.hpe.com/servers/ashrae.

Upgradeability

One of the following depending on model

• FlexibleLOM connector for 1 or 10 or 25 Gigabit networking options
• Up to 4 DIMM slots available for higher memory capacity
• Up to 4SFF (+2SFF optional) Drive bays or 2LFF Drive bays
• HPE Smart Array or Smart HBA Controller
• Redundant Power Supply
• Dedicated iLO Management Port
• M.2 NVMe SSDs for boot

Graphic

• Integrated Matrox G200 video standard
• Video modes up to 1920 x 1200 @ 60 Hz (32 bpp)
• 16 MB Video Memory
• HPE iLO 5 on system management memory
• 32 MB Flash
• 4 Gbit DDR3 with ECC protection

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi.

Intelligent Provisioning

Hassle free server and OS provisioning for one or more servers with Intelligent Provisioning.

Learn more at http://www.hpe.com/servers/intelligentprovisioning.

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs.

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP). Learn more at http://www.hpe.com/info/smartupdate.

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities.

Learn more at http://www.hpe.com/servers/iLOamplifierpack.

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview.

HPE Systems Insight Manager (HPE SIM)

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. Learn more at http://www.hpe.com/info/hpesim.

Security

• UEFI Secure Boot and Secure Start support
• Immutable Silicon Root of Trust
• FIPS 140-2 validation
• Common Criteria certification
• Configurable for PCI DSS compliance
• Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
• Support for Commercial National Security Algorithms (CNSA)
• iLO Security Modes including a New iLO Advanced Premium Security License
• Granular control over iLO interfaces
• Smart card (PIV/CAC) and Kerberos based 2-factor Authentication
• Tamper-free updates – components digitally signed and verified
• Secure Recovery – recover critical firmware to known good state on detection of compromised FW
• Ability to rollback firmware
• Secure erase of NAND
• TPM (Trusted Platform Module) 1.2 option
• TPM (Trusted Platform Module) 2.0 option
• Bezel Locking Kit
• Chassis Intrusion detection option
• Intel® Software Guard Extensions (Intel® SGX)

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.
