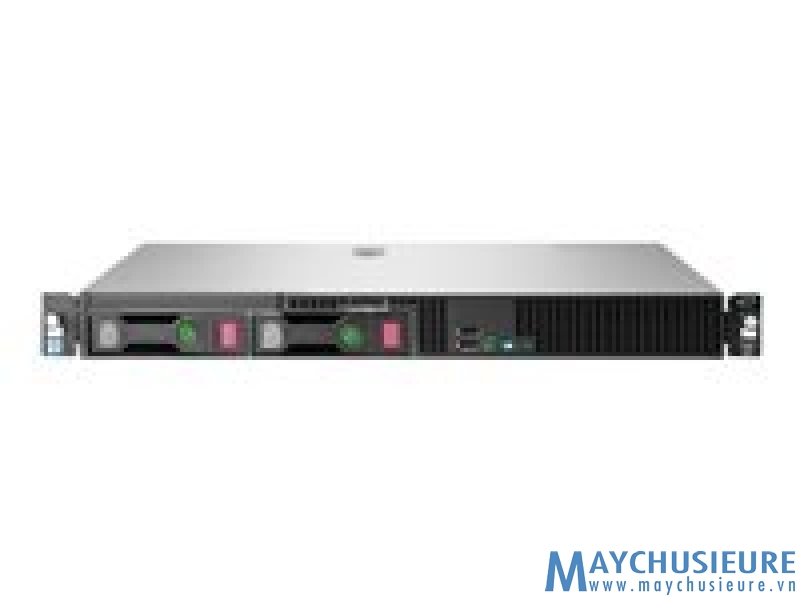

    HPE ProLiant DL20 Gen9 2LFF CTO Server E3-1220v5/2x500GB - WARRANTY 3 YEAR

    Giá (chưa có VAT): 20,550,000 VNĐ

      Mã sản phẩm: DL20-2LFF-E3-1220v5-2x500GB-3Years
    • Hãng sản xuất : HPE
    • Bảo hành : 36
    • Tình trạng: Còn hàng
    • Lượt xem: 934

    Chọn mua

    Mua hàng



    Processor: Intel® Xeon® Processor E3-1220 v5 (8M Cache, 3.00 GHz)

    Memory: 1 x HPE 8GB (1x8GB) Dual Rank x8 DDR4-2133 CAS-15-15-15 Unbuffered Standard Memory Kit

    Network Controller: HPE embedded 1Gb 2-port 332i network Adapter

    Raid Controller: HPE Dynamic Smart Array B140i

    Hard Drive: 2 x 500GB Western RE Enterprise SATA 6Gb/s 7200RPM 64MB 3.5 inch

    Support 2 LFF HDD Bays (Hot Plug)

    Optical Drive Bay: 1; (Optional: DVD-ROM, DVD-RW)

    Optical Drive: None

    PCI-Express Slots: 2 PCIe 3.0 slots

    Power Supply: (1) 290W Non Hot Plug Power Supply

    Fans: 3 non hot plug, non-redundant

    Management: iLO Management (standard), Intelligent Provisioning (standard),  iLO Essentials (optional),  iLO Scale-out (optional only for DL), iLO Advanced (optional)

    Form Factor: Rack (1U), HPE Short Friction Rail Kit

    Overview

    HPE ProLiant DL20 Generation9 (Gen9)



    The dense and compact HPE ProLiant DL20 Gen9 Server powered by Intel Pentium, Core i3 and E3-1200v5 processors provides a unique blend of enterprise class capabilities & value. It offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point.





    Front View



    1

     Access Panel

    3

     Serial number/iLO information pull tab

    5

    Health LED

    7

    Power On/Standby button and system power LED button

    9

     NIC status LED

    2

    Optical Drive

    4

    2 USB 2.0 connectors

    6

    Front 2 Fan Assembly

    8

    UID LED

    10

    Hard Drive Bays



    Rear view



    1

    Expansion Slot 1, PCIe x 8

    3

    Redundant Power Supply (only on SFF Chassis)

    5

    NIC Connector 2

    7

    NIC1/shared iLO connector

    2

    Expansion Slot 2, PCIe x 16

    4

    UID LED

    6

    Video Connector

    8

    USB 3.0 Connector





    Internal View



    1

    Fan cage shown with 2 fans

    3

    (Under) Power supply (1x 290W power supply shown)

    5

    Internal USB 3.0 connector

    7

    PCIe Riser

    9

    1 Processor, heatsink showing, with HP Smart Socket Guide

    2

    DDR4 DIMM slots. 4 slots

    4

    Central Fan Assembly

    6

    Embedded HPE Smart Array B140i controller

    8

    MicroSD card slot

    What's New

    • New LFF 10TB SAS/SATA drives brings maximum capacity of DL20 Gen9 capacity to 20TB
    • Introducing NVIDIA Quadro M2000 GPU support
    • New 10Gb FlexFabric NICs provides seamless performance upgrade from 1Gb
    • HPE 290W Power supply has been 80Plus Silver Certified






    Standard Features

    NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon

    Intel® Xeon® processor E3-1200v5 quad core processor family is designed to deliver the best combination of performance, built-in capabilities, and cost-effectiveness. The product also supports Intel® Pentium® and Intel® Core-i3 dual core processors. Choose one of the following processors based on the model:


    Processor

    One of the following depending on model

    Model

    CPU frequency

    Cores



    L3 Cache

    Power

    DDR4 Hz

    G4400

    3.3GHz

    2

    3MB

    54W

    2133

    G4500

    3.5GHz

    2

    3MB

    51W

    2133

    i3-6100

    3.7GHz

    2

    3MB

    51W

    2133

    i3-6300

    3.8GHz

    2

    4MB

    51W

    2133

    E3-1220v5

    3.0GHz

    4

    8MB

    80W

    2133

    E3-1225v5

    3.3GHz

    4

    8MB

    80W

    2133

    E3-1230v5

    3.4GHz

    4

    8MB

    80W

    2133

    E3-1240v5

    3.5GHz

    4

    8MB

    80W

    2133

    E3-1270v5

    3.6GHz

    4

    8MB

    80W

    2133

    E3-1280v5

    3.7GHz

    4

    8MB

    80W

    2133

    E3-1240Lv5

    2.1GHz

    4

    8MB

    25W

    2133

    E3-1260Lv5

    2.9GHz

    4

    8MB

    45W

    2133




    Chipset

    Intel® C232 Chipset

    NOTE: For more information regarding Intel chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/


    On System Management Chipset

    HPE iLO (Firmware HPE iLO4 2.3) 4GB NAND

    NOTE: 1GB USB user space configurable via UEFI and accessible via iLO. Read and learn more in the iLO QuickSpecs.


    Memory



    Type:

    DDR4 Unbuffered (UDIMM)



    Unbuffered (UDIMM)



    DIMM Slots Available

    4

    4 DIMM slots per processor; 2 channels per processor, 2 DIMMs per channel

    Maximum Capacity (UDIMM)

    64GB

    (4 x 16GB UDIMM @2133MHz)



    Memory Protection

    ECC



    Network Controller

    HPE Ethernet 1Gb 2-port 332i network Adapter or BCM5720.



    The HPE ProLiant DL20 Gen9 server offers the customer a dual-port NIC standard with the option to upgrade with a variety of networking options.


    Expansion Slots

    Dual side Low profile riser

    Expansion Slots #

    Technology

    Bus Width

    Connector Width

    Bus Number

    Form Factor

    Notes

    1

    PCIe 3.0

    x8

    x8



    Half length/half height



    2

    PCIe 3.0

    x8

    x8



    Half length/full height



    NOTE: Bus Width data indicates the number of physical electrical lanes running to the connector.

    FlexibleLOM Riser

    Expansion Slots #

    Technology

    Bus Width

    Connector Width

    Bus Number

    Device Number

    Form Factor

    Notes

    1

    Flexible LOM

    x8

    x8



    Half length/half height



    2

    PCIe 3.0

    x8

    x8



    Half length/full height



    NOTE: This riser is mandatory for installing FlexibleLOMs.

    GPU Riser

    Expansion Slots #

    Technology

    Bus Width

    Connector Width

    Bus Number

    Device Number

    Form Factor

    Notes

    1



    2

    PCIe 3.0

    x16

    x16



    Half length/full height





    NOTE: It is mandatory to choose one of the above risers.


    Storage Controller

    One of the following depending on model

    Entry Models

    HPE Dynamic Smart Array B140i Controller

    Base Models

    HPE Dynamic Smart Array B140i Controller

    Performance Models

    HPE H240 FIO Smart Host Bus Adapter

    NOTE: B140i provides support for up to 4 SATA drives, data transmission speeds up to 6Gb/s and supports RAID 0, 1 & 5 on DL20 Gen9.

    NOTE: H240 provides support for up to 4 SAS/SATA drives, data transmission speeds up to 12Gb/s and supports RAID 0, 1 & 5 on DL20 Gen9.

    NOTE: DL20 Gen9 also supports other controller options like P440; read additional option to know more.


    Internal Storage Devices

    One of the following depending on model

    Optical Drives

    Optional: DVD-ROM, DVD-RW

    Hard Drives

    None ship standard

    Hard Drive Bays

    4 SFF drive bays total with Optical Bay

    2 LFF drive bays total with Optical Bay

    NOTE: HPE ProLiant DL20 Gen9 server offers Hot plug LFF, Non hot plug LFF and SFF versions in CTO. The Optical Drive bay is available with both models.

    NOTE: Drive cage changes are not supported.
    NOTE: All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 654961-B21: HPE SFF Gen9 Hard Drive Blank Kit or P/N 689745-B21: HPE LFF Gen9 Hard Drive Blank Kit or P/N 654963-B21: HPE LFF Gen9 Hard Drive Blank kit. These part numbers for single HDD blanks below are also provided should the customer require replacement HDD blanks for their server.


    Maximum Internal Storage

    One of the following depending on model



    CAPACITY

    CONFIGURATION

    Hot Plug SFF SAS

    8TB

    4 x 2TB

    Hot Plug SFF SATA

    8TB

    4 x 2TB

    Hot Plug LFF SAS

    20TB

    2 x 10TB

    Hot Plug LFF SATA

    20TB

    2 x 10TB

    Hot Plug SFF SAS SSD

    15.36TB

    4 x 3.84TB

    Hot Plug SFF SATA SSD

    15.36TB

    4 x 3.84TB

    Hot Plug LFF SATA SSD

    15.36TB

    4 x 3.84TB

    Non Hot Plug LFF SATA

    8TB

    2 x 4TB


    Power Supply

    One of the following depending on model

    HPE 290W FIO Power Supply

    HPE 900W AC 240V DC Redundant Power Supply

    NOTE: HPE 900W Redundant Power Supply supports100VAC to 240VAC and also supports 240VDC.

    HPE Entry-Level Power Supplies provide lower-cost options for customers trying to balance their need for enterprise class efficiency and reliability while maintaining lowest possible hardware costs.  The above mentioned Entry-Level power supply options have been designed specifically for HPE ProLiant DL20 Gen9 Server.

    The HPE 290W FIO Power Supply is the standard, non-redundant AC power supply with 80Plus Silver Certification.  It features 92% power efficiency with a set of features optimized for the DL20 Gen9 rack server.



    The HPE 900W Gold (Redundant) AC/240V DC Power Input Module with Power Backplane can be configured to support power redundancy in ProLiant servers that offer only a single power supply bay, providing additional protection against power loss.  With an 80 Plus Gold power efficiency rating (up to 92%), this power option helps to reduce operating expenses while protecting against trapped power capacity in the data center.  The power backplane option can support up to two (2) hot-plug AC power input modules. This Redundant power supply option is only supported on DL20 Gen9 SFF chassis model.



    All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page located athttp://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/options/power-cable.html



    To review the power requirements for your selected system, please use the HPE Power Advisor Tool located at http://www.hp.com/go/hppoweradvisor.


    System Fans

    One of the following depending on model



    Non-redundant

    Redundant

    1P model

    3 fans

    NA

    NOTE: DL20 has 3 fans, 2 front fan assemblies and 1 center fan assembly which ship standard, non-redundant.


    Interfaces

    Video

    1 rear video connector

    USB

    5 USB ports (standard)
    Front:    2xUSB 2.0
    Rear:     2xUSB 3.0
    Internal: 1x USB 3.0

    Micro SD Slot

    1 Micro SD

    NOTE: The SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered.

    LOM Network Ports

    2x1GbE ports

    NOTE: Customers can upgrade to next generation network (10 GbE) by installing a FlexibleLOM riser.


    Operating Systems and Virtualization Software Support for ProLiant Servers

    Microsoft Windows Server

    Red Hat Enterprise Linux (RHEL)

    SUSE Linux Enterprise Server (SLES)

    VMware

    NOTE: VMWare availability is dependent on General availability from the vendor. DL20 supports VMWare 5.5U3 and 6.0 U1

    NOTE: For more information on the Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport and our driver download page http://h20566.www2.hpe.com/portal/site/hpsc?ac.admitted=1447391526103.125225703.1938120508.


    Upgradeability

    One of the following depending on model

    FlexibleLOM connector for 1 Gigabit or 10 Gigabit networking options

    Up to 4 DIMM slots available for higher memory capacity

    Up to 4SFF Drive bays or 2LFF Drive bays

    HPE Smart Array or Smart HBA Controller

    Redundant Power Supply

    NOTE: RPS is only compatible with DL20 SFF Chassis. Customer can upgrade from DL20 Gen9 on SFF chassis with 290W PSU to 900W redundant power supply.


    Industry Standard Compliance

    UEFI (Unified Extensible Firmware Interface Forum)

    PCIe 3.0 Compliant

    PXE Support

    WOL Support

    Microsoft® Logo certifications

    USB 3.0 Support

    ASHRAE A3

    NOTE: Refer to technical specifications section for more details.


    Graphics

    Integrated Matrox G200 video standard

    On board graphics: Integrated Matrox G200 video standard

    • 1280 x 1024 (32 bpp)

    • 1920 x 1200 (16 bpp)



    HP iLO 4 On System Management Memory

    • 16 MB Flash

    • 256 MB DDR 3 with ECC (112 MB after ECC and video)

    HPE NVIDIA Quadro K2200 GPU Module

    NOTE: Install GPU riser option to support GPU card. A GPU enablement kit 811271-B21 is mandatory to support GPU.

    HPE NVIDIA Quadro M2000 GPU Module

    NOTE: Install GPU riser option to support GPU card. A GPU enablement kit 811271-B21 is mandatory to support GPU.


    HPE Server UEFI/Legacy ROM

    Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen9 platform defaults to UEFI and can be factory or field configured for Legacy BIOS Boot Mode.

    NOTE: The UEFI System Utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.



    UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

    • Secure Boot
    • Operating system specific functionality
    • Support for > 2.2 TB (using GPT) boot drives
    • USB 3.0 Stack
    • Embedded UEFI Shell
    • Mass Configuration Deployment Tool using RESTful API for iLO 4
    • PXE boot support for IPv6 networks
    • Boot support for option cards that only support a UEFI option ROM
    • Network Stack configurations

    NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.
    NOTE: UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant Gen9 Server.


    Form Factor

    One of the following depending on model

    1U Rack form factor

    4SFF and 2LFF version:

    1.70" (4.32cm) Height x 15.05" (38.22cm) Depth x 17.11" (43.46cm) Length

    NOTE: Depth of the chassis is measured from rear to ear at 15.05". Depth from rear to bezel is 15.5".


    Embedded Management

    HPE Integrated Lights-Out
    (HPE iLO)

    Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO. Not available on ML10 Gen9. Learn more at http://www.hpe.com/info/ilo.



    UEFI

    Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at http://www.hpe.com/servers/uefi.



    RESTful API

    RESTful API for iLO 4 is Redfish 1.0 conformance for simplified server management such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.



    Intelligent Provisioning

    Hassle free server and OS provisioning for 1 or few servers with Intelligent Provisioning. Learn more at http://www.hpe.com/servers/intelligentprovisioning.



    Embedded Remote Support

    The Hewlett Packard Enterprise embedded remote support, when used with Insight Online direct connect or HPE Insight Remote Support, allows HPE ProLiant servers to transmit hardware events directly to Hewlett Packard Enterprise or a Hewlett Packard Enterprise Authorized Partner for automated phone home support. Learn more at http://www.hpe.com/info/insightonline/explore.

    NOTE: For more information, visit: http://www.hp.com/go/ilo or HPE iLO Management Engine technologies whitepaper.


    Server utilities

    Smart Update

    Optimize firmware and driver updates with Smart Update solutions including Smart Update Manager (SUM) and Service Pack for ProLiant (SPP) and smart components. Learn more at http://www.hpe.com/servers/smartupdatemanager.



    HPE Systems Insight Manager (HPE SIM)

    HPE SIM allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers, and also provides you with basic support for non-HPE servers.

    HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. Learn more at http://www.hpe.com/servers/hpsim.



    Scripting Tool Kit and Windows PowerShell

    Provision 1 to many servers using your own scripts to discover and deploy them with Scripting Tool Kit (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/proliant/stkorhttp://www.hpe.com/servers/powershell.



    RESTful Interface Tool

    RESTful Interface tool is a scripting tool to provision using RESTful API for iLO 4 to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.



    HPE iLO Mobile Application

    Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.



    HPE Insight Online

    HPE Insight Online, available at no additional cost as part of your Hewlett Packard Enterprise warranty, Care Pack or contractual support agreement with Hewlett Packard Enterprise, is a personalized dashboard for simplified tracking of IT operations and support information from anywhere, anytime. Learn more at http://www.hpe.com/info/insightonline/explore.


    Security

    Power-on password

    Serial interface control

    Administrator's password

    TPM 1.2

    TPM 2.0

    APCI 2.0b

    UEFI


    Warranty

    This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

    NOTE: Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.

    • Thương hiệu 1
    • Thương hiệu 2
    • Thương hiệu 3
    • Thương hiệu 4
    • Thương hiệu 5
    • Thương hiệu 6
    • Thương hiệu 7
    • Thương hiệu 8
    • Thương hiệu 9
    • Thương hiệu 10
    • Thương hiệu 11
    TOP
    hỗ trợ khách hàng«
