Processor: 1 x HPE DL380 Gen9 Intel® Xeon® E5-2695v4 (2.1GHz/18-core/45MB/120W) Processor Kit
Memory: 1 x HP 16GB (1x16GB) Single Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit
Network Controller: HPE Embedded 1Gb Ethernet 4-port 331i Adapter, plus optional HPE Flexible LOM or stand up card
Raid Controller: HPE Flexible Smart Array P440ar/2GB
Hard Drive: None HDD
Internal Storage: 8 SFF HDD Bays (upgradable to 24)
Optical Drive Bay: Optional Universal Media Bay (724865-B21)
Optical Drive : Optional DVD-ROM (726536-B21) or DVD-RW (726537-B21) via the Universal Media Bay (724865-B21)
PCI-Express Slots: 3 PCIe slots (+3 PCI slots available with upgrade option, second processor required)
Power Supply: (1) HPE 500W Flex Slot Platinum Power Supply
Fans: 4 hot plug fans, redundant
Management: iLO Management (standard), Intelligent Provisioning (standard), iLO Advanced (optional), Insight Control (optional), HPE OneView (optional)
Form Factor: Rack (2U), HPE Easy Install Rails with CMA
HPE ProLiant DL380 Generation9 (Gen9) |
|
The HPE ProLiant DL380 Gen9 Server delivers the best performance and expandability in the Hewlett Packard Enterprise 2P rack portfolio. Reliability, serviceability and near continuous availability, backed by a comprehensive warranty, make it ideal for any environment. Deploy the data center standard. |
|
|
|
|
|

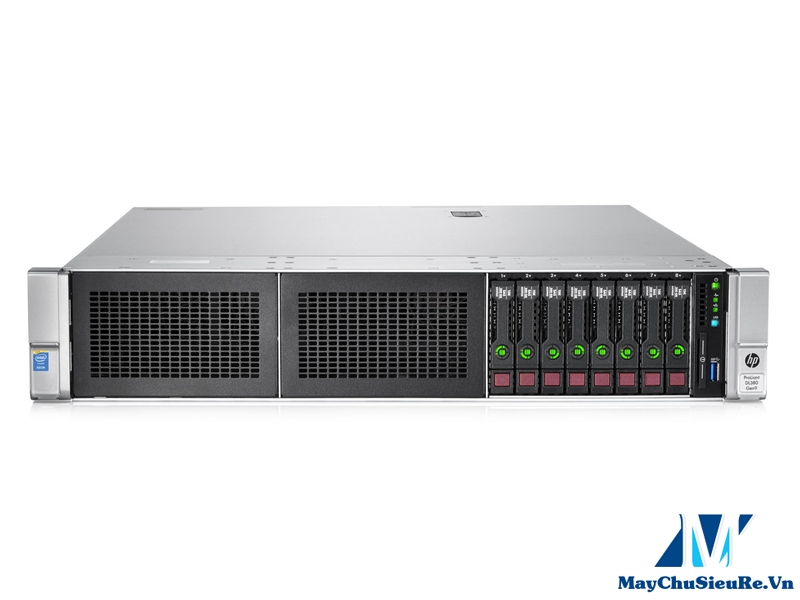

Front View - 8SFF Chassis with Optional Universal Media Bay shown |
|
|||
1. |
Quick removal access panel |
2. |
Universal Media bay. 2 USB 2.0 and VGA standard (8SFF bay optional) |
3. |
Optional Optical drive. Requires Universal Media bay |
4. |
Optional 2 SFF HDD, blank shown. Requires Universal Media bay |
5. |
Drive Bay 2. Blank shown, 8SFF or 6NVMe optional |
6. |
8 SFF Drive Cage Bay |
7. |
Power On/Standby button and system power LED button |
8. |
Health LED |
9. |
NIC status |
10. |
UID button |
11. |
USB 3.0 |
12. |
Serial label pull tag |
13. |
Bay 3 |
14. |
Bay 2 |
15. |
Bay 1 |
|
|
|
|
Rear View |
|
|||
1. |
PCI Slots (Slots 1-3 top to bottom, riser shipped standard) |
2. |
PCI Slots (Slots 4-6top to bottom, requires second riser card, and second processor) |
3. |
Optional serial port |
4. |
Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end) |
5. |
Power supply Power connection |
6. |
Power supply Power LED |
7. |
HPE Flexible Slot Power Supply bay 2 (800w shown) |
8. |
Power supply Power connection |
9. |
Power supply Power LED |
10. |
HPE Flexible Slot Power Supply bay 1 (800w shown) NOTE: Optional Battery Back up option. |
11. |
VGA connector |
12. |
Embedded 4x1GbE Network Adapter |
13. |
Dedicated iLO connector |
14. |
USB 3.0 connectors (2) |
15. |
Unit ID LED |
16. |
Optional FlexibleLOM ports (Shown: 4x1GbE) |
|
|
Internal View |
|
|||
1. |
Fan cage shown with 6 standard Hot-plug fans (High Performance fans optional) |
2. |
Optional HPE Smart Storage Battery |
3. |
MicroSD card slot NOTE: Optional Dual MicroSD. |
4. |
Internal USB 3.0 connector (2) |
5. |
Optional HPE Flexible Smart Array or Smart HBA (H240ar shown) |
6. |
(Under) Hot Plug redundant HPE Flexible Slot Power supplies NOTE: Optional Micro UPS Battery Back up option. |
7. |
Connection for second (optional) riser (Required second CPU) |
8. |
Embedded 4x1Gbe NIC |
9. |
Primary PCIe riser, standard (Optional double wide GPU riser) |
10. |
Optional FlexibleLOM slot |
11. |
X4 SATA ports (1 and 2) |
12. |
2 Processors, heatsink showing, with HPE Smart Socket Guide |
13. |
DDR4 DIMM slots. Shown fully populated in 24 slots (12 per processor) |
|
|
|
|||
|
NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Processor |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NOTE: All processors above 120W use a high efficiency Heatsink. Doublewide PCIe cards are only supported with this Heatsink. For processors with a standard Heatsink that require double wide PCIe cards, the Graphics Enablement kit option is also required (719082-B21). NOTE: Mixing of E5-2600v3 and E5-2600v4 processors is not supported. NOTE: Field upgrade from E5-2600v3 to E5-2600v4 is supported. NOTE: All processors support Hyper-Threading except E5-2609 v4/v3 and E5-2603 v4/v3. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Chipset |
Intel® C610 Series Chipset |
Intel® E5-2600v3 Processor Family |
|
Intel® E5-2600v4 Processor Family |
|
NOTE: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/ |
|
|
On System Management Chipset |
HPE iLO (Firmware HPE iLO4 2.0) 4GB NAND |
NOTE: Read and learn more in the iLO QuickSpecs. |
|
|
Memory One of the following depending on model |
Type: |
||
HPE SmartMemory |
|||
DDR4 Registered (RDIMM), Load Reduced (LRDIMM) or Persistent Memory (NVDIMM) |
|||
DIMM Slots Available |
24 |
(12 DIMM slots per processor, 4 channels per processor, 3 DIMMs per channel) |
|
Maximum Capacity (LRDIMM) |
3TB |
(24 x 128GB LRDIMM @2400MHz)* |
|
Maximum Capacity (RDIMM) |
768GB |
(24 x 32GB RDIMM @2400MHz) |
|
Maximum Capacity (NVDIMM) |
128GB
|
(16 x 8GB NVDIMM)* |
|
NVDIMM support only with the E5-2600v4 processors, and RDIMMs only
|
|||
|
Memory Protection |
Advanced ECC |
Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip. |
||||||
Online Spare |
Memory online spare mode detects a rank that is degrading and switches operation to the spare rank. |
|||||||
|
||||||||
Expansion Slots |
||||||||
Primary Riser |
Expansion Slots # |
Technology |
Bus |
Connector Width |
Bus |
Form Factor |
Notes |
|
1 |
PCIe 3.0 |
X8 |
X16 |
7 |
Full-height, half-length slot |
Proc 1 |
||
2 |
PCIe 3.0 |
X8 |
X16 |
10 |
Full-height, half-length slot |
Proc 1 |
||
3 |
PCIe 3.0 |
X8 |
X8 |
13 |
Half length/full height |
Proc 1 |
||
NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector. NOTE: All slots support PCIe cards to 150W or more depending on card, but an additional Power Cord Option is required (PN 669777-B21). See Option Section below for offering. NOTE: Double wide PCIe cards are only supported in risers with the Processors leveraging the High Performance Heatsink. For Processors requiring double wide GPU support please order the GPU enablement kit (719082-B21). |
||||||||
Slot 2 PCIe Riser 719073-B21 |
Expansion Slots # |
Technology |
Bus |
Connector Width |
Bus |
Form Factor |
Notes |
|
4 |
PCIe 3.0 |
X16 |
X16 |
16 |
Full-height, full-length slot |
Proc 2 |
||
5 |
PCIe 3.0 |
X16 |
X16 |
20 |
Full-height, full-length slot |
Proc 2 |
||
6 |
PCIe 3.0 |
X8 |
X8 |
23 |
Full-height, half-length slot |
Proc 2 |
||
NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector. NOTE: When populating the second optional riser slot, the second processor must be installed. NOTE: Double wide PCIe cards are only supported in risers with the Processors leveraging the High Performance Heatsink. For Processors requiring double wide GPU support please order the GPU enablement kit (719082-B21). |
||||||||
Slot 1 PCIe Riser 719076-B21 |
Expansion Slots # |
Technology |
Bus |
Connector Width |
Bus |
Form Factor |
Notes |
|
2 |
PCIe 3.0 |
X16 |
X16 |
0x05 |
Full-height, full-length slot |
Proc 1 |
||
3 |
PCIe 3.0 |
X8 |
X8 |
0x08 |
Full-height, half-length slot |
Proc 1 |
||
NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector. NOTE: This will replace the standard primary riser and supports double wide cards. NOTE: All slots support PCIe cards to 150W or more depending on card, but an additional Power Cord Option is required (PN 669777-B21). See Option Section below for offering. NOTE: Double wide PCIe cards are only supported in risers with the Processors leveraging the High Performance Heatsink. For Processors requiring double wide GPU support please order the GPU enablement kit (719082-B21). |
||||||||
|
||||||||
Storage Controller |
Entry Models |
HPE Dynamic Smart Array B140i Controller |
NOTE: The embedded B140i controller will operate in UEFI only mode. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22. NOTE: The B140i defaults to AHCI off the chipset. Smart array needs to be enables on the SATA only models if required. NOTE: The B140i will not operate in Legacy mode. |
||
Base Models |
HPE Dynamic Smart Array B140i Controller |
|
HPE Flexible Smart Array P440ar/2G FIO Controller |
||
HPE Flexible Smart Array P840/4G FIO Controller |
||
HPE Smart Array P840ar/2G Controller |
||
Performance Models |
HPE Dynamic Smart Array B140i Controller |
|
HPE Flexible Smart Array P440ar/2GB |
||
|
Internal Storage Devices |
Optical Drive |
Ships standard in Performance Models |
Optional: DVD-ROM, DVD-RW |
||
Hard Drives |
None ship standard |
|
Hard Drive Bays |
8 SFF with optional Universal Media Bay, 8 SFF bay or 6 NVME drive options |
|
24 SFF plus optional 2 SFF drives rear |
||
12 LFF plus optional 3 LFF drives rear |
||
NOTE: The 3 LFF rear drives will consume space for the secondary riser. NOTE: The 12 LFF model also supports 2 SFF rear which allows for the second riser. NOTE: The 6 NVMe drive option can only be leveraged in the SFF model and replaces Bay 2. |
||
4 LFF drive bays total |
||
NOTE: The Universal Media Bay (724865-B21) not available with the LFF model or the 24SFF model, and can only be populated in Bay1. |
||
|
Maximum Internal Storage |
|
CAPACITY |
CONFIGURATION |
Hot Plug SFF SAS |
52.0TB |
24+2 x 2TB (with optional rear SFF drive cage) |
|
Hot Plug SFF SATA |
52.0TB |
24+2 x 2TB (with optional SFF drive cage) |
|
Hot Plug LFF SAS |
150.0TB |
12+3 x 10TB (with optional rear LFF drive cage) |
|
Hot Plug LFF SATA |
150.0TB |
12+3 x 10TB (with optional rear LFF drive cage) |
|
Hot Plug SFF SAS SSD |
99.84TB |
24+2 x 3.84TB (with optional rear SFF drive cage) |
|
Hot Plug LFF SATA SSD |
57.6B |
12+3 x 3.84TB (with optional rear LFF drive cage) |
|
Hot Plug SFF NVMe PCIe SSD |
12TB NVMe + 36TB SFF |
6x2TB NVMe plus 36TB with 18 SFF (Bay 1, bay 3 and optional rear drive support) |
|
|
Power Supply |
HPE 500W Flex Slot Platinum Hot Plug Power Supply |
NOTE: Available in 94% efficiency. |
|
HPE 800W Flex Slot Platinum Hot Plug Power Supply |
|
NOTE: Available in 94% and 96% efficiency. |
|
HPE 1400W Flex Slot Platinum Plus Hot Plug Power Supply |
|
NOTE: Available in 94% efficiency. |
|
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen9 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.
All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.
To review the power requirements for your selected system, please use the HPE Power Advisor Tool located at http://www.hpe.com/info/hppoweradvisor. Power specifications and technical content for all HPE Server power supplies can be found athttp://www.hp.com/go/proliant/powersupply. |
|
|
System Fans |
Non-redundant |
Redundant |
|
2P model |
|
6 fans |
|
NOTE: 1P models typically ship with 4 standard fans. The second processor option kit contains 2 additional fans. NOTE: The 12LFF and 24SFF model ship with 6 High Performance fans as standard. NOTE: High Performance Fan Kit is available to meet ambient temperature environments. NOTE: High Performance Fan Kit is required for Passive GPU support. NOTE: The 8SFF Bay1 kit (719067-B21) will ship with 6 High efficiency fans. |
|||
|
Interfaces |
Serial |
Optional |
Video |
2 (1 front, optional via Universal Media Bay, 724865-B21), 1 back not active simultaneously |
|
FlexibleLOM Network Ports |
4 x 1Gb ports shipping standard with optional FlexibleLOM |
|
HPE iLO Remote Management Network Port |
1 Gb Dedicated |
|
Micro SD Slot |
1 Micro SD |
|
NOTE: The Micro SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered. |
||
USB 3.0 |
Up to 5 total: 1 front, 2 rear, 2 internal (secure), 2 optional USB 2.0 front via Universal Media Bay |
|
SID (Systems Insight Display) |
Optional |
|
NOTE: Not shipping as standard. Available as a CTO option or as a field upgrade (768900-B21). |
||
|
Operating Systems and Virtualization Software Support for ProLiant Servers |
|
NOTE: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport and our driver download page: http://h20566.www2.hpe.com/hpsc/swd/public/readIndex?sp4ts.oid=7271242. |
|
|
Upgradeability |
Upgradeable to 2 processors (36 Cores) |
NOTE: Processor upgrade available from Intel® Xeon® Processors E5-2600v3. Please contact Hewlett Packard Enterprise Technology Sales (http://www.hpe.com/support), your local Hewlett Packard Enterprise Re-seller. |
|
Up to 24 DIMM slots available for higher Memory capacity |
|
FlexibleLOM connector for 1 Gigabit or 10 Gigabit networking options |
|
HPE Flexible Smart Array or Smart HBA Controllers Embedded 10-Port SATA, B140i as standard |
|
Optional 3 slot riser (x16, x16, x8), or 2 slot primary riser (x16, x8) |
|
NOTE: To take advantage of the additional 3 PCI slot upgrade, the second processor must be installed. |
|
Redundant Power Supply |
|
Optical Drive supported via Universal Media Bay |
|
NOTE: The Universal Media bay provides front VGA and 2xUSB 2.0, plus ability to add 2SFF and Optical. NOTE: Universal Media bay is only available with 8 or 8+8SFF model & can be populated in Bay1 only. |
|
HPE Legacy Mode (FIO only, 758959-B22) |
|
NOTE: UEFI is the default mode for all models. Can change default to legacy via CTO. |
|
|
Industry Standard Compliance |
ACPI 2.0b Compliant |
PCIe 3.0 Compliant |
|
PXE Support |
|
WOL Support |
|
Microsoft® Logo certifications |
|
USB 3.0 Support |
|
USB 2.0 Support |
|
NOTE: This support is on the optional Universal Media Bay. |
|
Energy Star |
|
ASHRAE A3/A4 |
|
NOTE: The DL380 Gen9 is now one of the first HPE ProLiant Gen9 Servers with Extended Ambient Support up to 45 C for data center infrastructures designed for better energy efficiency such as but not limited to fresh air cooling. For additional technical thermal details regarding ambient temperatures, humidity and features support please visit: http://www.hpe.com/servers/ashrae. |
|
UEFI (Unified Extensible Firmware Interface Forum) |
|
NOTE: UEFI is the default for the DL380 Gen9. Legacy model can be selected in the field or as a CTO option (758959-B22). |
|
|
Graphics |
Integrated Matrox G200eH2 video standard with 16MB of Video RAM
|
HPE iLO 4 On System Management Memory
|
|
|
HPE Server UEFI/Legacy ROM |
Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen9 platform defaults to UEFI and can be factory or field configured for Legacy BIOS Boot Mode. NOTE: The UEFI System Utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.
UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:
NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI. |
|
Form Factor |
2U Rack form factor |
8 SFF & 24SFF Drive Bay Version: |
|
4 LFF & 12LFF Drive Bay Version: |
|
NOTE: Dimensions without bezel. |
|
|
Embedded Management |
HPE Integrated Lights-Out |
Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO. Learn more at http://www.hpe.com/info/ilo. |
|
||
UEFI |
Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at http://www.hpe.com/servers/uefi. |
|
|
||
RESTful API |
RESTful API for iLO 4 is Redfish 1.0 conformance for simplified server management such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi. |
|
|
||
Intelligent Provisioning |
Hassle free server and OS provisioning for 1 or few servers with Intelligent Provisioning. Learn more at http://www.hpe.com/servers/intelligentprovisioning. |
|
|
||
Embedded Remote Support |
The Hewlett Packard Enterprise embedded remote support, when used with Insight Online direct connect or HPE Insight Remote Support, allows HPE ProLiant servers to transmit hardware events directly to Hewlett Packard Enterprise or a Hewlett Packard Enterprise Authorized Partner for automated phone home support. Learn more at http://www.hpe.com/info/insightonline/explore. |
|
|
Server utilities |
Smart Update |
Optimize firmware and driver updates with Smart Update solutions including Smart Update Manager (SUM) and Service Pack for ProLiant (SPP). Learn more athttp://www.hpe.com/servers/smartupdatemanager. |
|
||
HPE Systems Insight Manager (HPE SIM) |
HPE SIM allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers, and also provides you with basic support for non-HPE servers. |
|
|
||
Scripting Tool Kit and Windows PowerShell |
Provision 1 to many servers using your own scripts to discover and deploy them with Scripting Tool Kit (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/proliant/stk orhttp://www.hpe.com/servers/powershell. |
|
|
||
RESTful Interface Tool |
RESTful Interface tool is a scripting tool to provision using RESTful API for iLO 4 to discover and deploy servers at scale. Learn more athttp://www.hpe.com/info/resttool. |
|
|
||
HPE iLO Mobile Application |
Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit:http://www.hpe.com/info/ilo/mobileapp. |
|
|
||
HPE Insight Online |
HPE Insight Online, available at no additional cost as part of your Hewlett Packard Enterprise warranty or contractual support agreement with Hewlett Packard Enterprise, is a personalized dashboard for simplified tracking of IT operations and support information from anywhere, anytime. Learn more athttp://www.hpe.com/info/insightonline/explore. |
|
|
Security |
Power-on password |
Serial interface control |
|
Administrator's password |
|
UEFI |
|
iLO 4 (Integrated Lights-Out 4) has 12 customizable user accounts and SSL encryption |
|
Integrated Lights-Out can be disabled via a Global Setting |
|
iLO Advanced supports directory services integration |
|
TPM 1.2 |
|
|
Warranty |
This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.
|
