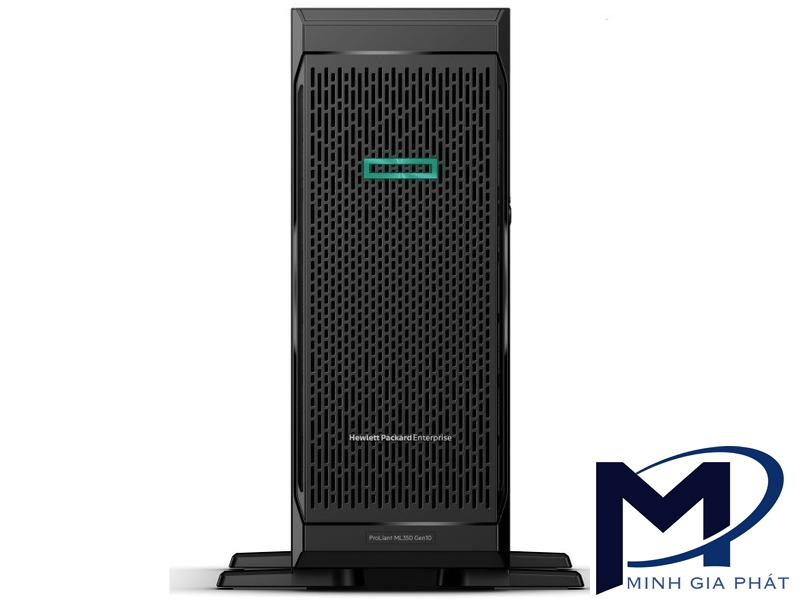

    HPE ProLiant ML350 Gen10 LFF Server - Xeon-Platinum 8260M

    Giá (chưa có VAT): Liên hệ

      Mã sản phẩm: 877625-B21/8260M
    • Hãng sản xuất : HPE
    • Bảo hành : 36
    • Tình trạng: Còn hàng
    • Lượt xem: 96

    Chọn mua

    Mua hàng

    Processor: 1 x HPE ML350 Gen10 Intel Xeon-Platinum 8260M (2.4GHz/24-core/165W) Processor Kit

    Memory: 1 x HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

    Network Controller:  Embedded 4-Port 1GbE HPE Ethernet 1Gb 4-port 369i Adapter

    Raid Controller: HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller

    Hard Drive: None ship as standard

    Internal Storage: 4 LFF HP Chassis with optional 4 LFF HDD Cage Kit (874566-B21) to be selected. Upgradeable to 12 LFF max.

    Optical Drive Bay: Optional Slimline ODD Bay Kit (874577-B21) for SATA DVD-ROM/DVD-RW optical drive

    Optical Drive : None ship as standard

    PCI-Express Slots: 4-slots (x16, x8, x16, x8) as standard

    Power Supply: 1x 550W HPE FlexSlot Power Supply

    Fans: 6 standard fans

    Management: HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, and HPE OneView Advanced (require licenses)

    Energy Star : 2.1 certified

    Form Factor: 4U Tower

    Warranty : H9GH3E HPE 4 Year Foundation Care Next Business Day ML350 Gen10 Service



    HPE ProLiant ML350 Gen10 Server



    Driving a wide range of workloads with a flexible, shorter and rackable chassis design that can fit in different physical environments, the secure 2P HPE ProLiant ML350 Gen10 Server delivers the ideal set of performance and expandability for changing business needs making it the choice for growing SMBs, remote/branch offices of large enterprises and data centers. Choose this 2P tower that grows with you in the digital economy.








    Front View – SFF chassis with optional Gen10 8SFF HDD Cage Kits shown (Rack mode)



    1.

    Power On/Stand-by button and System Power LED

    6

    iLO Service Port

    2.

    Box1: optional HDD Drive Cage Bay for additional 8 SFF or 4 LFF drives support, or upgradeable to 2 HH media devices + 1 slim-line DVD.

    7

    USB 3.0 port x 2

    3

    Serial number/iLO information pull tab

    8

    UID Button/LED

    4

    Box2: optional HDD Drive Cage Bay for additional 8 SFF or 4LFF drives support, or upgradeable to 8 SFF NVMe Express Bay

    9

    NIC Status LED

    5

    Box3: default with one 8 SFF HDD Drive Cage

    10

    System Health LED

    NOTE: Image shown without the security front bezel which is standard in every ML350 Gen10 unit and without the 1U sliding rail tray (of the Tower-to-Rack conversion kit).














    Front View – LFF chassis with optional Gen10 4LFF HDD Cage Kits shown (Tower mode)



    1.

    iLO Service Port

    7

    Box1: optional HDD Drive Cage Bay for additional 4 LFF or 8SFF drives support, or upgradeable to 2 HH media devices + 1 slim-line DVD

    2.

    USB 3.0 port x 2

    8

    Box2: optional HDD Drive Cage Bay for additional 4 LFF or 8 SFF drives support

    3.

    UID Button/LED

    9

    Box3: default with one 4LFF HDD Drive Cage

    4

    NIC Status LED

    10

    Tower feet (foldable at servicing)

    5

    System Health LED

    11

    Serial number/iLO information pull tab

    6

    Power On/Stand-by button and System Power LED





    NOTE: For NHP LFF chassis, please find detail in the ML350 Gen10 User Guide.

    NOTE: Image shown without the security front bezel which is standard in every ML350 Gen10 unit.










    Internal View – with optional 2nd CPU, Smart Array Modular Controller and Redundant Fan Kit shown

    1.

    Redundant fan cage kit with addt’l (4) system fans are shown, supporting 2P and/or advanced cooling requirements.

    7

    PCIe Slots (Slot 5-8, coming from CPU2) (requires Optional 2nd processor): Slot 5 and 7 can support Optional GPU

    2.

    CPU Socket 2 with the 2nd processor and heatsink, (depending on server model, the 2nd processor can be Optional) and 12 DDR4 DIMM slots for RDIMM or LRDIMM

    8

    System fans: (2) fans along with the air baffle (not shown) are standard for basic cooling

    3.

    HPE Smart Array Modular controller (AROC/Depending on server model, this can be Optional)

    9

    PCIe Slots (Slot 1-4, coming from CPU1): Slot 1 and 3 can support Optional GPU

    4.

    HPE Smart Storage Battery (Optional depending on model)

    10

    TPM Connector

    5.

    MicroSD Slot x1

    11

    Internal USB port x2 (USB3.0 x1 and USB2.0 x1)

    6

    CPU Socket 1 with one processor and heatsink, and 12 DDR4 DIMM slots for RDIMM or LRDIMM
















    Rear View – With HPE Flex Slot RPS shown.

    1.

    HPE Flexible Slot 2 (Optional – empty with power supply blank shown)

    10

    Embedded 4 x 1GbE Network ports

    2.

    HPE Flexible Slot 1 Power Supply

    11

    USB 3.0 port x 2

    3.

    Power supply Power LED

    12

    Unit ID LED

    4.

    Power supply handle (with red touch-point)

    13

    Tower feet (foldable at servicing)

    5.

    Power supply Power connection

    14

    PCI Slots (Slots 1-4) – Slot 1 and 3 can support Optional GPU

    6.

    Display Port

    15

    Padlock eye

    7.

    VGA Port

    16

    Kensington security slot

    8.

    Serial Port

    17

    PCI Slots (Slots 5-8) (requires Optional second processor) – Slot 5 and 7 can support Optional GPU

    9.

    Dedicated iLO Management Port (RJ45)












    What’s New:

    • Supports the new 16 TB LFF SATA / SAS HDDs boosting internal storage capacity up to 192 TB in LFF configuration.
    • Supports the new HPE NVidia Quadro P1000 and P2200 GPU modules for low end graphics.
    • Supports Intel’s Second Generation Xeon® Scalable processors with improved per-core performance and HPE DDR4 SmartMemory 2933 MT/s DIMMs.
    • Supports mixed LFF and SFF drive cages within the same server for tiered storage.
    • Enhanced iLO 5 security features such as Server Configuration Lock, iLO Security Dashboard and One Button Secure Erase.
      • HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
      • Supports the HPE NVidia Tesla T4 (16GB) universal GPU module which supports multiple types of workloads including ML  (Machine Learning) / DL (Deep Learning) Training and Inference, HPC, Rendering and Graphics.
        • Supports the HPE NVidia Quadro RTX8000 and RTX6000 GPU modules and the new NVLink Bridge offering fast graphics and compute performance; GPU accelerated ray tracing for interactive and batch rendering; GPU accelerated DL (Deep Learning) for AI augmented applications.



    Platform Information



    Form Factor

    4U tower with rack conversion capability

    NOTE: When deployed as a Rack model, this system will take up 5U-height space in a standard data center rack facility.




    Chassis Types

    • 8 SFF chassis with optional SFF or LFF HDD cage kit (s), NVMe Express Bay, half-height (5.25") media bay up to 2, and 1 slim-line DVD bay kit options
    • 4 LFF chassis with optional LFF or SFF HDD cage kit (s), half-height (5.25") media bay up to 2, and 1 slim-line DVD bay kit options
    • 4 LFF NHP chassis with optional LFF NHP HDD cage kit (s), half-height (5.25") media bay up to 2, and 1 slim-line DVD bay kit options

    NOTE: The 8 SFF chassis can be upgraded with SFF HDD cage kit (s) to 16 or 24 SFF. Note a field upgrade to 24 SFF will require redundant fan kit (874572-B21).

    NOTE: The 8 SFF NVMe Express Bay option (874569-B21) can only be leveraged in the SFF chassis and installed in Box 2. Maximum of 8 SFF NVMe PCIe drives are supported when two ML350 Gen10 NVMe Riser boards (shipped in 874569-B21) are populated. When only one Riser board is populated, then 4 NVMe drives are supported. Note a field upgrade to NVMe Express Bay will require redundant fan kit (874572-B21).

    NOTE: The 4 LFF HP or NHP chassis can be upgraded with LFF HDD cage kit (s) or LFF NHP HDD cage kit (s) to 8 or 12 LFF. Note a field upgrade to 12 LFF either in LFF hot-plug or LFF non-hot-plug chassis will require redundant fan kit (874572-B21).

    NOTE: The 8 SFF or 4 LFF or 4 LFF NHP chassis can be upgraded to add half-height media bay up to 2, and/or 1 slim-line DVD in Box1. Note a field upgrade to fully populate front storage bays (Box1, 2 and 3 fully loaded) will require redundant fan kit (874572-B21).

    NOTE: Now the system can support mixed SFF and LFF HDD cages in one system, for example, 4LFF + 8SFF + 4LFF based on a 4 LFF chassis. If the max. number of drives are installed in all three drive boxes, the redundant fan cage kit (874572-B21) is required.




    System Fans

    Standard – fan types included

    NOTE: 1P models typically ship with 2 standard fans located at system rear. These two fans are default inside every ML350 Gen10 unit and do NOT support hot-plug operations.

    NOTE: 2P models typically ship with 6 standard fans which provides N+1 redundant fan feature in most of the situations. For support detail or restriction, refer to ML350 Gen10 User Guide.

    NOTE: Optional redundant fan kit (874572-B21) provides advanced cooling and redundancy functionality in heavier configurations. Configurations that require this kit are provided in later sections. Refer to the User Guide for special configuration scenarios where this kit is required but does not provide redundancy feature.






    Processors – Up to 2 of the following depending on model.

    NOTE: For more information regarding Intel Xeon processors, please see the following

    https://www.intel.sg/content/www/xa/en/processors/xeon/scalable/xeon-scalable-platform.html.

    Intel First Generation Xeon® Scalable Processors

    Intel Xeon Models

    CPU Frequency

    Cores

    L3 Cache

    Power

    UPI

    DDR4

    Memory per socket

    Platinum Processors















    Platinum 8180M Processor

    2.5 GHz

    28

    38.50 MB

    205W

    3 @ 10.4 GT/s

    2666 MT/s

    1.5 TB

    Platinum 8180 Processor

    2.5 GHz

    28

    38.50 MB

    205W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Platinum 8176M Processor

    2.1 GHz

    28

    38.50 MB

    165W

    3 @ 10.4 GT/s

    2666 MT/s

    1.5 TB

    Platinum 8176 Processor

    2.1 GHz

    28

    38.50 MB

    165W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Platinum 8170M Processor

    2.1 GHz

    26

    35.75 MB

    165W

    3 @ 10.4 GT/s

    2666 MT/s

    1.5 TB

    Platinum 8170 Processor

    2.1 GHz

    26

    35.75 MB

    165W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Platinum 8168 Processor

    2.7 GHz

    24

    33.00 MB

    205W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Platinum 8164 Processor

    2.0 GHz

    26

    35.75 MB

    150W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Platinum 8160M Processor

    2.1 GHz

    24

    33.00 MB

    150W

    3 @ 10.4 GT/s

    2666 MT/s

    1.5 TB

    Platinum 8160 Processor

    2.1 GHz

    24

    33.00 MB

    150W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Platinum 8158 Processor

    3.0 GHz

    12

    24.75 MB

    150W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Platinum 8156 Processor

    3.6 GHz

    4

    16.50 MB

    105W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Platinum 8153 Processor

    2.0 GHz

    16

    22.00 MB

    125W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Gold Processors

    Gold 6154 Processor

    3.0 GHz

    18

    24.75 MB

    200W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Gold 6152 Processor

    2.1 GHz

    22

    30.25 MB

    140W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Gold 6150 Processor

    2.7 GHz

    18

    24.75 MB

    165W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Gold 6148 Processor

    2.4 GHz

    20

    27.50 MB

    150W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Gold 6146 Processor

    3.2 GHz

    12

    24.75 MB

    165W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Gold 6144 Processor

    3.5 GHz

    8

    24.75 MB

    150W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Gold 6142M Processor

    2.6 GHz

    16

    22.00 MB

    150W

    3 @ 10.4 GT/s

    2666 MT/s

    1.5 TB

    Gold 6142 Processor

    2.6 GHz

    16

    22.00 MB

    150W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Gold 6140M Processor

    2.3 GHz

    18

    24.75 MB

    140W

    3 @ 10.4 GT/s

    2666 MT/s

    1.5 TB

    Gold 6140 Processor

    2.3 GHz

    18

    24.75 MB

    140W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Gold 6138 Processor

    2.0 GHz

    20

    27.50 MB

    125W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Gold 6136 Processor

    3.0 GHz

    12

    24.75 MB

    150W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Gold 6134M Processor

    3.2 GHz

    8

    24.75 MB

    130W

    3 @ 10.4 GT/s

    2666 MT/s

    1.5 TB

    Gold 6134 Processor

    3.2 GHz

    8

    24.75 MB

    130W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Gold 6132 Processor

    2.6 GHz

    14

    19.25 MB

    140W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Gold 6130 Processor

    2.1 GHz

    16

    22.00 MB

    125W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Gold 6128 Processor

    3.4 GHz

    6

    19.25 MB

    115W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Gold 6126 Processor

    2.6 GHz

    12

    19.25 MB

    125W

    3 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Gold 5122 Processor

    3.6 GHz

    4

    16.50 MB

    105W

    2 @ 10.4 GT/s

    2666 MT/s

    768 GB

    Gold 5120 Processor

    2.2 GHz

    14

    19.25 MB

    105W

    2 @ 10.4 GT/s

    2400 MT/s

    768 GB

    Gold 5118 Processor

    2.3 GHz

    12

    16.50 MB

    105W

    2 @ 10.4 GT/s

    2400 MT/s

    768 GB

    Gold 5115 Processor

    2.4 GHz

    10

    13.75 MB

    85W

    2 @ 10.4 GT/s

    2400 MT/s

    768 GB






    Silver Processors















    Silver 4116 Processor

    2.1 GHz

    12

    16.50 MB

    85W

    2 @ 9.6 GT/s

    2400 MT/s

    768 GB

    Silver 4114 Processor

    2.2 GHz

    10

    13.75 MB

    85W

    2 @ 9.6 GT/s

    2400 MT/s

    768 GB

    Silver 4112 Processor

    2.6 GHz

    4

    8.25 MB

    85W

    2 @ 9.6 GT/s

    2400 MT/s

    768 GB

    Silver 4110 Processor

    2.1 GHz

    8

    11.00 MB

    85W

    2 @ 9.6 GT/s

    2400 MT/s

    768 GB

    Silver 4108 Processor

    1.8 GHz

    8

    11.00 MB

    85W

    2 @ 9.6 GT/s

    2400 MT/s

    768 GB

    Bronze Processors

    Bronze 3106 Processor

    1.7 GHz

    8

    11.00 MB

    85W

    2 @ 9.6 GT/s

    2133 MT/s

    768 GB

    Bronze 3104 Processor

    1.7 GHz

    6

    11.00 MB

    85W

    2 @ 9.6 GT/s

    2133 MT/s

    768 GB

    NOTE: Platinum – 8100 Series –2 Socket supports 2UPI, supports 6-Channel DDR4 @ 2666 MT/s providing up to 768 GB memory capacity (1.5 TB on select processor skus). Intel Turbo Boost Technology, Intel Hyper-Threading Technology supported. Intel AVX-512 (2x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS.

    NOTE: Gold – 5100, 6100 Series - 2 Socket supports 2UPI, supports 6-Channel DDR4 @ 2400 MHz (SKU 5122=supports 2666) providing up to 768GB memory capacity (1.5 TB on select skus). Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA)  (SKU 5122 supports 2x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS supported.

    NOTE: Silver – 4100 Series - 2 Socket supports 2UPI  @ 9.6 GT/s, 6-Channel DDR4 @ 2400 MHz providing up to 768 GB memory capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.

    NOTE: Bronze – 3100 Series - 2 Socket supports 2UPI @ 9.6 GT/s, supports 6-Channel DDR4 @ 2133 MHz providing up to 768GB memory capacity. Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.




    Intel Second Generation Xeon® Scalable Processors



    Intel Xeon Models

    CPU Frequency

    Cores

    L3 Cache

    Power

    UPI

    DDR4

    Memory per socket



    Platinum Processors



    Platinum 8280L Processor

    2.7 GHz

    28

    38.50 MB

    205W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    4.5 TB



    Platinum 8280M Processor

    2.7 GHz

    28

    38.50 MB

    205W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    2 TB



    Platinum 8280 Processor

    2.7 GHz

    28

    38.50 MB

    205W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB



    Platinum 8276L Processor

    2.2 GHz

    28

    38.50 MB

    165W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    4.5 TB



    Platinum 8276M Processor

    2.2 GHz

    28

    38.50 MB

    165W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    2 TB



    Platinum 8276 Processor

    2.2 GHz

    28

    38.50 MB

    165W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1TB



    Platinum 8270 Processor

    2.6 GHz

    26

    35.75 MB

    205W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB



    Platinum 8268 Processor

    2.9 GHz

    24

    35.75 MB

    205W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB



    Platinum 8260L Processor

    2.4 GHz

    24

    35.75 MB

    165W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    4.5 TB



    Platinum 8260M Processor

    2.4 GHz

    24

    35.75 MB

    165W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    2 TB



    Platinum 8260Y Processor

    2.4 GHz

    24/20/16

    35.75 MB

    165W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB



    Platinum 8260 Processor

    2.4 GHz

    24

    35.75 MB

    165W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB









    Platinum Processors

    Platinum 8256 Processor

    3.8 GHz

    4

    16.50 MB

    105W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB

    Platinum 8253 Processor

    2.2 GHz

    16

    22.00 MB

    125W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB

    Gold Processors

    Gold 6262V Processor

    1.9 GHz

    24

    33.00 MB

    135W

    3 @ 10.4 GT/s

    2400 MT/s

    1 TB

    Gold 6254 Processor

    3.1 GHz

    18

    24.75 MB

    200W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB

    Gold 6252N Processor

    2.3 GHz

    24

    35.75 MB

    150W

    3 @ 10.4 GT/s





    Gold 6252 Processor

    2.1 GHz

    24

    35.75 MB

    150W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB

    Gold 6248 Processor

    2.5 GHz

    20

    27.50 MB

    150W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB

    Gold 6246 Processor

    3.3 GHz

    12

    24.75 MB

    165W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB

    Gold 6244 Processor

    3.6 GHz

    8

    24.75 MB

    150W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB

    Gold 6242 Processor

    2.8 GHz

    16

    22.00 MB

    150W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB

    Gold 6240L Processor

    2.6 GHz

    18

    24.75 MB

    150W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    4.5 TB

    Gold 6240M Processor

    2.6 GHz

    18

    24.75 MB

    150W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    2 TB

    Gold 6240 Processor

    2.6 GHz

    18

    24.75 MB

    150W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB

    Gold 6238L Processor

    2.1 GHz

    22

    27.50 MB

    140W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    4.5 TB

    Gold 6238M Processor

    2.1 GHz

    22

    27.50 MB

    140W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    2 TB

    Gold 6238 Processor

    2.1 GHz

    22

    27.50 MB

    140W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB

    Gold 6234 Processor

    3.3 GHz

    8

    24.75 MB

    130W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB

    Gold 6230 Processor

    2.1 GHz

    20

    27.50 MB

    125W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB

    Gold 6226 Processor

    2.7 GHz

    12

    19.25 MB

    125W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB

    Gold 6222V Processor

    1.8 GHz

    20

    27.50 MB

    115W

    3 @ 10.4 GT/s

    2400 MT/s

    1 TB

    Gold 6212U Processor

    2.4 GHz

    24

    35.75 MB

    165W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB

    Gold 6210U Processor

    2.5 GHz

    20

    27.50 MB

    150W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB

    Gold 6209U Processor

    2.1 GHz

    20

    27.50 MB

    125W

    3 @ 10.4 GT/s

    2666 MT/s@2DPC

    2933 MT/s@1DPC

    1 TB

    Gold 5222 Processor

    3.8 GHz

    4

    16.50 MB

    105W

    2 @ 10.4 GT/s

    2933 MT/s@1DPC

    1 TB

    Gold 5220 Processor

    2.2 GHz

    18

    24.75 MB

    125W

    2 @ 10.4 GT/s

    2666 MT/s

    1 TB






    Gold Processors

    Gold 5218 Processor

    2.3 GHz

    16

    22.00 MB

    125W

    2 @ 10.4 GT/s

    2666 MT/s

    1 TB

    Gold 5218B Processor

    2.3 GHz

    16

    22.00 MB

    125W

    2 @ 10.4 GT/s

    2666 MT/s

    1 TB

    Gold 5217 Processor

    3.0 GHz

    8

    11.00 MB

    115W

    2 @ 10.4 GT/s

    2666 MT/s

    1 TB

    Gold 5215L Processor

    2.5 GHz

    10

    13.75 MB

    85W

    2 @ 10.4 GT/s

    2666 MT/s

    4.5 TB

    Gold 5215M Processor

    2.5 GHz

    10

    13.75 MB

    85W

    2 @ 10.4 GT/s

    2666 MT/s

    2 TB

    Gold 5215 Processor

    2.5 GHz

    10

    13.75 MB

    85W

    2 @ 10.4 GT/s

    2666 MT/s

    1 TB

    Silver Processors

    Silver 4216 Processor

    2.1 GHz

    16

    22.00 MB

    100W

    2 @ 9.6 GT/s

    2400 MT/s

    1 TB

    Silver 4215 Processor

    2.5 GHz

    8

    11.00 MB

    85W

    2 @ 9.6 GT/s

    2400 MT/s

    1 TB

    Silver 4214 Processor

    2.2 GHz

    12

    16.50 MB

    85W

    2 @ 9.6 GT/s

    2400 MT/s

    1 TB

    Silver 4210 Processor

    2.2 GHz

    10

    13.75 MB

    85W

    2 @ 9.6 GT/s

    2400 MT/s

    1 TB

    Silver 4208 Processor

    2.1 GHz

    8

    11.00 MB

    85W

    2 @ 9.6 GT/s

    2400 MT/s

    1 TB

    Bronze Processors

    Bronze 3204 Processor

    1.9 GHz

    6

    8.25 MB

    85W

    2 @ 9.6 GT/s

    2133 MT/s

    1 TB

    NOTE: Platinum – 8200 Series –2 Socket supports 3 UPI links at 10.4 GT/s, supports 6-Channel DDR4 @ 2933 MT/s at 1DPC and 2666 MT/s at 2DPC, providing up to 1 TB memory capacity per socket (2 TB and 4.5 TB on select processor skus and if DCPMM is selected.). Intel Turbo Boost Technology, Intel Hyper-Threading Technology supported. Intel AVX-512 (2x 512-bit FMA), 48 lanes PCIe 3.0, Node Controller Support, advanced RAS, VNNI/DL Boost.

    NOTE: Gold – 6200 Series – 2 Socket supports 3 UPI links at 10.4 GT/s, supports 6-Channel DDR4 @ 2933 MT/s at 1DPC and 2666 MT/s at 2DPC, providing up to 1 TB memory capacity per socket (2 TB and 4.5 TB on select processor skus and if DCPMM is selected). Intel Turbo Boost Technology, Intel Hyper-Threading Technology supported. Intel AVX-512 (2x 512-bit FMA), 48 lanes PCIe 3.0, Node Controller Support, advanced RAS, VNNI/DL Boost.

    NOTE: Gold – 5200 Series – 2 Socket supports 2 UPI links at 10.4 GT/s, supports 6-Channel DDR4 @ 2666 MT/s (SKU 5222=supports 2933 @1DPC) providing up to 1 TB memory capacity per socket (2 TB and 4.5 TB on select processor skus and if DCPMM is selected). Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (1x 512-bit FMA)  (SKU 5222 supports 2x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS supported, VNNI/DL Boost.

    NOTE: Silver – 4200 Series – 2 Socket supports 2 UPI links @ 9.6 GT/s, 6-Channel DDR4 @ 2400 MT/s providing up to 1 TB memory capacity per socket. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported, VNNI/DL Boost.

    NOTE: Bronze – 3200 Series – 2 Socket supports 2 UPI links @ 9.6 GT/s, supports 6-Channel DDR4 @ 2133 MT/s providing up to 1 TB memory capacity per socket. Intel AVX-512 (1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported, VNNI/DL Boost.

    NOTE: The "memory per socket" info shown in the table above is the processor specification. Max. memory capacity supported in ML350 at Gen10 Intel Second Generation Intel Xeon® Scalable Processor launch is 3 TB – 2 sockets populated with select processors and 128GB DDR4 DIMMs, which counts with DDR4 memory only. Support of larger than 3 TB will be at post launch.

    NOTE: For Intel Xeon® Scalable Processor family SKU numbering convention, refer to the chart below.













    Chipset

    Intel C622 Chipset

    NOTE: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/




    On System Management Chipset

    HPE iLO 5 ASIC

    NOTE: Read and learn more in the iLO QuickSpecs.




    Memory

    One of the following depending on model

    Type:

    HPE DDR4 SmartMemory, Registered (RDIMM)

    Load Reduced (LRDIMM)

    DIMM Slots Available

    24

    12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel

    Maximum capacity (LRDIMM)

    3 TB

    24 x 128 GB LRDIMM @ 2600 MT/s

    Maximum capacity (RDIMM)

    768 GB

    24 x 32 GB RDIMM @ 2600 MT/s



    NOTE: The maximum memory by socket is limited by the processor selection.

    NOTE: Mixing of RDIMM and LRDIMM memory is not supported.

    NOTE: The following shows the support of the Intel Second Generation Xeon® Scalable Processors

    Type:

    HPE DDR4 SmartMemory, Registered (RDIMM),

    Load Reduced (LRDIMM)

    DIMM Slots Available

    24

    12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel

    Maximum capacity (LRDIMM)

    3 TB

    24 x 128 GB LRDIMM @ 2933 MT/s

    Maximum capacity (RDIMM)

    1.5 TB

    24 x 64 GB RDIMM @ 2933 MT/s



    NOTE: The maximum memory by socket is limited by the processor selection.

    NOTE: Mixing of RDIMM and LRDIMM memory is not supported.







    Memory Protection

    For details on the HPE Server Memory Options RAS feature, visit: http://www.hpe.com/docs/memory-ras-feature.




    Expansion Slots

    Slots #

    Technology

    Bus Width

    Connector Width

    Slot Form Factor

    Notes

    1

    PCIe 3.0

    X16

    X16

    Full-height,full-length slot

    Proc 1

    2

    PCIe 3.0

    X4

    X8

    Full-height,full-length slot

    Proc 1

    3

    PCIe 3.0

    X16

    X16

    Full-height,full-length slot

    Proc 1

    4

    PCIe 3.0

    X4

    X8

    Full-height,full-length slot

    Proc 1



    NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.

    NOTE: Slot 4 is routed from the PCH.

    Slots #

    Technology

    Bus Width

    Connector Width

    Slot Form Factor

    Notes

    5

    PCIe 3.0

    X16

    X16

    Full-height,full-length slot

    Proc 2

    6

    PCIe 3.0

    X8

    X8

    Full-height,full-length slot

    Proc 2

    7

    PCIe 3.0

    X16

    X16

    Full-height,full-length slot

    Proc 2

    8

    PCIe 3.0

    X8

    X8

    Full-height,full-length slot

    Proc 2



    NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.

    NOTE: Max. 8 PCIe slots are available on the ML350 Gen10.




    Storage Controllers

    The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet.

    One of the following depending on model.

    Software RAID

    HPE Smart Array S100i SR Gen10 SW RAID

    NOTE: HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.

    NOTE: HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled.

    NOTE: HPE Smart Array S100i SR Gen10 Software RAID, supporting 6Gb/s SATA, is an entry-level solution for supporting RAID 0, 1, 5, and 10 on SATA drives connected to the embedded SATA ports on the system board.

    NOTE: Customers using Linux and VMware can use the embedded SATA ports in AHCI mode. In AHCI mode S100i Software RAID is not enabled.

    NOTE: The S100i only supports Windows. For Linux users, HPE offers a solution that uses in-distro open-source software to create a two-disk RAID 1 boot volume. For more information visit: https://downloads.linux.hpe.com/SDR/project/lsrrb/




    Essential RAID Controller

    • HPE Smart Array E208i-a SR Gen10 Controller
    • HPE Smart Array E208i-p SR Gen10 Controller
    • HPE Smart Array E208e-p SR Gen10 Controller

    Performance RAID Controller

    • HPE Smart Array P408i-a SR Gen10 Controller
    • HPE Smart Array P408i-p SR Gen10 Controller
    • HPE Smart Array P408e-p SR Gen10 Controller
    • HPE Smart Array P816i-a SR Gen10 Controller
    • HPE Smart Array P824i-p MR Gen10 Controller

    NOTE: Performance RAID Controllers require the HPE Smart Storage Battery (P01367-B21) or HPE Smart Storage Hybrid Capacitor (P02381-B21) which is sold separately.

    NOTE: Separate cable kit will be required depending on configuration requirement. Refer to the later section for more information.






    Internal Storage Devices

    One of the following depending on model

    Optical Drive

    • Optional slim-line DVD-ROM/DVD-RW up to 1
    • Optional half-height (5.25") RDX or tape/LTO devices up to 2

    Hard Drive Cages

    • 8 SFF Hot-Plug SAS/SATA HDD cages; upgradeable to 24 SFF drives
    • 4 LFF Hot-Plug SAS/SATA HDD cages; upgradeable to 12 LFF drives
    • 4 LFF Non-Hot-Plug SATA HDD cages; upgradeable to 12 LFF drives
    • 8 SFF PCIe NVMe Express Bay; upgradeable to 8 SFF NVMe SSDs

    NOTE: All Pre-configured Models come with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HPE SFF HDD Blank Kit or P/N 807878-B21: HPE LFF HDD Spade Blank Gen9 Kit.  HDD blanks are not needed in the NHP LFF system.

    Hard Drives

    None ship standard




    Maximum Internal Storage



    Internal Storage

    Capacity

    Configuration

    Hot Plug SFF SAS

    48.0 TB

    24 x 2 TB

    Hot Plug SFF SATA

    48.0 TB

    24 x 2 TB

    Hot Plug LFF SAS

    192.0 TB

    12 x 16 TB

    Hot Plug LFF SATA

    192.0 TB

    12 x 16 TB

    Hot Plug SFF SAS SSD

    184.32 TB

    24 x 7.68 TB

    Hot Plug SFF SATA SSD

    184.32 TB

    24 x 7.68 TB

    Hot Plug LFF SAS SSD

    46.08 TB

    12 x 3.84 TB

    Hot Plug LFF SATA SSD

    46.08 TB

    12 x 3.84 TB

    Non Hot Plug LFF SATA

    48.0 TB

    12 x 4 TB

    Hot Plug SFF NVMe PCIe SSD

    32 TB NVMe

    8 x 4 TB NVMe



    NOTE: NHP LFF SKU supports SATA hard disk drives only.




    Interfaces



    Serial

    1 standard (at system rear)

    VGA Port

    1 standard (at system rear)

    Display Port

    1 standard (at system rear)

    NOTE: The system can support dual monitors on duplication mode thru these standard ports of VGA and Display Port without adding additional graphic cards.

    Embedded Network Ports

    4 x 1 Gb ports shipping standard, with optional stand up card

    HPE iLO Remote Management Network Port

    1 Gb Dedicated

    Front iLO Service Port

    1 standard

    Micro SD Slot

    1 Micro SD (internal)

    NOTE: The Micro SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered.

    USB 3.0/2.0

    6 total, standard: 2 front (USB 3.0), 2 rear (USB 3.0), 2 internal (1 x USB 3.0 & 1 x USB 2.0)











    Power Supply

    • HPE 500W Standard Non-Hot-Plug Power Supply Kit

    NOTE: Non Redundant Power Supply

    NOTE: Available in 92% efficiency and supported in pre-configured models only. This power supply is available in a few pre-built system SKUs. Customers can still choose to upgrade to HPE Flex Slot RPS later by installing the ML350 Gen10 RPS enablement kit (874571-B21).

    • HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

    NOTE: Available in 94% efficiency.

    • HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

    NOTE: Available in 94% and 96% efficiency.

    NOTE: Also available in -48VDC and 227VAC/380VDC power inputs.

    • HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

    NOTE: Available in 94% efficiency.

    HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple output power options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.



    All pre-configured servers ship with a country-specific AC power cord in Tower models; while in the Rack model, a standard 6-foot IEC C-13/C-14 jumper cord (416151-B21) is included. If a different power cord is required, please check the ProLiant Power Cables web page.

    To review the power requirements for your selected system, please use the HPE Power Advisor Tool.



    For information on power specifications and technical content visit HPE Server power supplies.




    Operating Systems and Virtualization Software Support for ProLiant Servers



    HPE and ClearCenter will help you lower the cost of building on-premise solutions without sacrificing security and ease of use. HPE ProLiant servers with ClearOS give you a simple, secure, and affordable operating system with an intuitive web based graphical user interface that provides a cloud-like experience on- premise, and an Application Marketplace with over 100 apps and growing. Whether you’re starting out or scaling, you decide what applications you need and pay as you grow.

    NOTE: ClearOS allows you to build a fully functional server that is just right for you at no upfront cost.

    For more information on ClearOS, please visit http://www.hpe.com/servers/clearos.




    CentOS 7.6

    NOTE: CentOS is not directly supported / Community Supported (Based on RHEL so RHEL testing and enablement applicable to CentOS) CentOS 6.9 / CentOS 7.3 / CentOS 7.4.

    The HPE Software RAID S100i only supports Windows. For Linux users, HPE offers a solution that uses in-distro open-source software to create a two-disk RAID 1 boot volume. For more information visit: https://downloads.linux.hpe.com/SDR/project/lsrrb/

    For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server.  http://www.hpe.com/info/ossupport









    Industry Standard Compliance

    • ACPI 6.1 Compliant
    • PCIe 3.0 Compliant
    • WOL Support
    • Microsoft® Logo certifications
    • PXE Support
    • VGA Display Port
    • USB 3.0 Compliant
    • USB 2.0 Compliant
    • Energy Star
    • SMBIOS 3.1
    • UEFI 2.6
    • Redfish API
    • IPMI 2.0
    • Secure Digital 2.0
    • Advanced Encryption Standard (AES)
    • Triple Data Encrytion Standard (3DES)
    • SNMP v3
    • TLS 1.2
    • DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
    • Active Directory v1.0
    • ASHRAE A3/A4

    NOTE: For additional technical thermal details regarding ambient temperatures, humidity and features support please visit: http://www.hpe.com/servers/ashrae.

    • UEFI (Unified Extensible Firmware Interface Forum)

    NOTE: UEFI is the default setting for the ML350 Gen10. Legacy mode can be selected in the field or as a CTO option (758959-B22).




    Graphics

    Integrated Video Standard

    • Video modes up to 1920 x 1200@60Hz (32 bpp)
    • ·16MB Video Memory

    HPE iLO 5 on system management memory

    • 32 MB Flash
    • 4 Gbit DDR 3 with ECC protection



    HPE Server UEFI/Legacy ROM

    Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.

    NOTE: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.

    UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

    • Secure Boot and Secure Start enable for enhanced security
    • Operating system specific functionality
    • Support for > 2.2 TB (using GPT) boot drives
    • USB 3.0 Stack
    • Embedded UEFI Shell
    • Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
    • PXE boot support for IPv6 networks
    • Workload Profiles for simple performance optimization



    UEFI Boot Mode only:

    • TPM 2.0 Support
    • NVMe Boot Support
    • Platform Trust Technology (PTT) can be enabled.
    • iSCSI Software Initiator Support.
    • HTTP/HTTPs Boot support as a PXE alternative.
    • Boot support for option cards that only support a UEFI option ROM

    NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

    NOTE: UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant Gen10 Server.




    Embedded Management



    HPE Integrated Lights-Out (HPE iLO)

    Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO. Learn more athttp://www.hpe.com/info/ilo.




    UEFI

    Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

    Learn more at http://www.hpe.com/servers/uefi




    Intelligent Provisioning

    Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

    Learn more at http://www.hpe.com/servers/intelligentprovisioning




    iLO RESTful API

    iLO RESTful API is Redfish API conformance and offers  simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi




    Server Utilities



    Active Health System

    The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs




    Active Health System Viewer

    Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit:http://www.hpe.com/servers/ahsv




    Smart Update

    Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).

    Learn more at https://buy.hpe.com/b2c/us/en/software/infrastructure-management-software/system-server-management-software/hpe-system-server-software-management-software/smart-update-manager-%28sum%29/p/5182020.




    iLO Amplifier Pack

    Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities.

    Learn more at http://www.hpe.com/servers/iLOamplifierpack









    HPE iLO Mobile Application

    Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit:http://www.hpe.com/info/ilo/mobileapp.




    RESTful Interface Tool

    RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool




    Scripting Tools

    Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell




    HPE OneView Standard

    HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview.




    HPE Systems Insight Manager (HPE SIM)

    Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. Learn more at http://www.hpe.com/info/hpesim.




    Security

    • Server Configuration Lock – protect systems in transit (new iLO security feature thru iLO Advanced)
    • Security Dashboard (new), standard
    • UEFI Secure Boot and Secure Start support
    • Immutable Silicon Root of Trust
    • FIPS 140-2 validation
    • Common Criteria certification
    • Configurable for PCI DSS compliance
    • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
    • Support for Commercial National Security Algorithms (CNSA)
    • Tamper-free updates – components digitally signed and verified
    • Secure Recovery – recover critical firmware to known good state on detection of compromised firmware
    • Ability to rollback firmware
    • One Button Secure Erase – secure erase of NAND/User data back to factory defaults
    • TPM (Trusted Platform Module) 1.2 option
    • TPM (Trusted Platform Module) 2.0 option
    • Front bezel key-lock feature – standard, available in both Tower and Rack models
    • Padlock slot, standard
    • Kensington Lock slot, standard








    Warranty

    This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.



    NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. 3) Non CSR parts must be serviced by a trained authorized service engineer. Additional information regarding worldwide limited warranty and technical support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.




    • Thương hiệu 1
    • Thương hiệu 2
    • Thương hiệu 3
    • Thương hiệu 4
    • Thương hiệu 5
    • Thương hiệu 6
    • Thương hiệu 7
    • Thương hiệu 8
    • Thương hiệu 9
    • Thương hiệu 10
    • Thương hiệu 11
    TOP
    hỗ trợ khách hàng«
