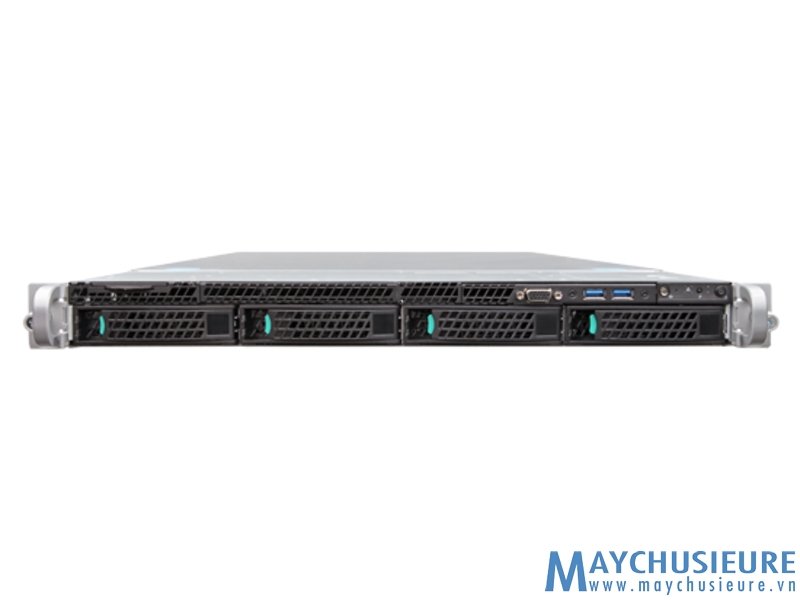

Model Name:Intel® Server System R1304WT2GS - Only Bareboard

Processor: None CPU

Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s

Memory: None Ram

Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots

Network Controller: Integrated LAN 2x Ports Gigabit Ethernet

Raid Controller: SoftWare RAID 0, 1, 10, optional 5

Hard Drive: None HDD

Support 4 Bays 2.5" or 3.5" Hot-swap (Hot Plug)

Optical Drive Bay: 1; (Optional: DVD-ROM, DVD-RW)

Optical Drive: None

PCI-Express Slots: (2) risers with 1x16 PCIe* 3.0 FHHL slot on each F1UL16RISER

Power Supply: (1) 750W Hot Plug Power Supply

Fans: Redundant Fans

Management: Intel® Remote Management Module Support

Form Factor: Rack (1U)

GENERAL

• Packaged Quantity
1
• Product Form Factor
Rack-mountable - 1U
• Server Scalability
2-way
• Front Accessible Bays Qty
1
• Hot-Swap Bays Qty
4
• Manufacturer
Intel

PROCESSOR / CHIPSET

• CPU
No CPU
• Chipset Type
Intel C612
• Processor Socket
LGA2011-v3 Socket

STORAGE

• Type
none

MEMORY

• Max Supported Size
3072 GB
• Form Factor
DIMM 288-pin
• Slots Qty
24
• Empty Slots
24

STORAGE CONTROLLER

• Interface Type
Serial ATA-600 / SAS 3.0
• Channel Qty
10

PROCESSOR

• Max Supported Qty
2
• Upgradability
upgradable

MONITOR

• Monitor Type
None.

MISCELLANEOUS

• Included Accessories
2 x CPU Heatsink, 2 x riser cards

NETWORKING

• Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocol
IPMI 2.0
• Form Factor
integrated
• Ethernet Ports
2 x Gigabit Ethernet
• Ethernet Controller(s)
Intel I350
• Remote Management Controller
Emulex Pilot 3 iBMC

GRAPHICS CONTROLLER

• Form Factor
integrated
• Video Interfaces
VGA

DIMENSIONS & WEIGHT

• Width
16.9 in
• Depth
28 in
• Height
1.7 in

MANUFACTURER WARRANTY

• Type
3 years warranty

PRINTER

• Type
none

PHYSICAL CHARACTERISTICS

• Form Factor
rack-mountable

POWER

• Type
power supply - hot-plug
• Power Redundancy
optional
• Power Redundancy Scheme
1+1 (with optional power supply)
• Installed Qty
1
• Max Supported Qty
2

GENERAL

Manufacturer
Intel
