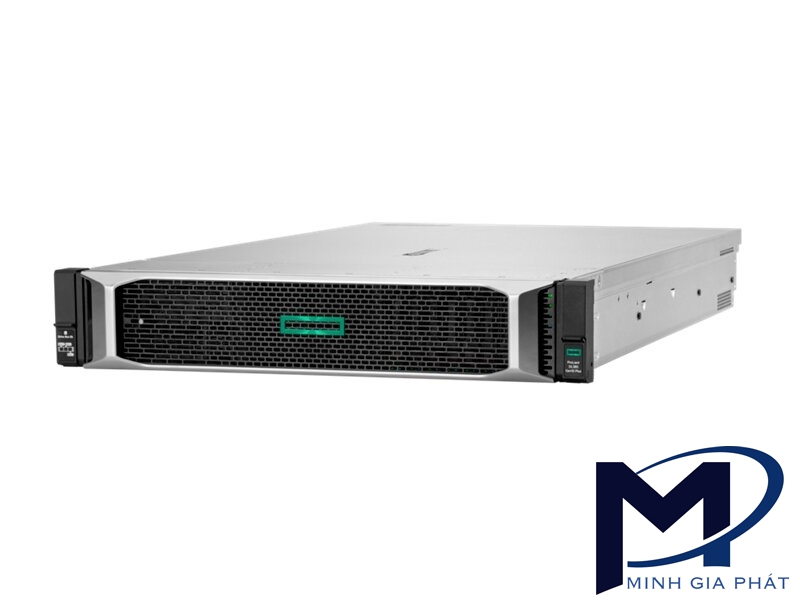

P05173-B21 HPE ProLiant DL380 Gen10 Plus Server,S4310, 32GB, 24SFF, MR416i-p, 800W, non-HDD, 4y TC Basic

Giá (chưa có VAT): Liên hệ

Mã sản phẩm: P05173-B21

Hãng sản xuất : HPE
Bảo hành : 36
Tình trạng: Còn hàng
Lượt xem: 67

Chi tiết sản phẩm
Thông số kĩ thuật

P05173-B21 HPE ProLiant DL380 Gen10 Plus Server,S4310, 32GB, 24SFF, MR416i-p, 800W, non-HDD, 4y TC Basic

Processor: Intel Xeon-Silver 4310 2.1GHz 12-core 120W Processor for HPE
Memory: 1 x HPE 32GB (1x32GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit
Network Controller: I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter
Raid Controller: Broadcom MegaRAID MR416i-p x16 Lanes 4GB Cache NVMe/SAS 12G Controller
Hard Drive: None included (24 SFF Chassis)
Optical Drive: Not included (Optical Drive options available)
PCI-Express Slots: 3 PCIe: x8/x16/x8
Power Supply: 1 x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
Form Factor: Rack (2U)
Warranty : 3-year parts, 3-year labor, 3-year onsite support with next business day response.

Overview

HPE ProLiant DL380 Gen10 Plus Server
Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen10 Plus delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry’s most trusted compute platform.



Front View – SFF chassis with optional Universal Media bay shown

1.	Optional front display port (Via Universal Media Bay)	8.	USB 3.0
2.	Quick removal access panel	9.	Serial number label pull tab
3.	Power On/Standby button and system power LED	10.	Box 3 - 8 SFF Drive Cage Bay
4.	Health LED	11.	Box 2 - Optional 8 SFF Drive Cage Bay
5.	NIC status LED	12.	Box 1 - Universal Media Bay (optional):
6.	UID button/LED	13.	Drive support label
7.	iLO Service Port	14.	Optional USB 2.0 (via Universal Media Bay)



Front View – 12LFF chassis shown

1.	Health Status	5.	12 x LFF media
2.	Power On/Standby button and system power LED button	6.	Drive support label
3.	NIC Status	7.	Quick removal access panel
4.	UID button/LED


Internal View 8SFF chassis

1.	2 Processors, heatsink showing	5.	Smart Array connector
2.	Hot Plug redundant HPE Flexible Slot Power supplies	6.	DDR DIMM Slots¹
3.	Second (optional) riser (Requires second CPU)	7.	Hot plug fans (6 single rotor standard)²
4.	Primary riser
Notes: - ¹Shown fully populated in 32 slots (16 per processor) - ²High performance temperature fans optional


Rear View – Standard for all DL380 Gen10 Plus

1.	Primary Riser. PCIe 4.0 Slots (Slots 1-3)	6.	VGA connector
2.	Secondary Riser. PCIe 4.0 Slots (Slots 4-6)	7.	OCP NIC ports (if equipped)¹
3..	Tertiary Riser (Slots 7-8).	8.	USB connectors 3.0 (2)
4.	Optional serial port	9.	Dedicated ILO Management Port
5.	Power Supply 1 and 2	10.	Blank cover, not available for use
Notes: ¹Supports various NICs, up to 200GbE.

What’s New New Pre-configured SKUs using Broadcom Tri-mode controllers New Pre-configured SKU using HPE SR100i Gen10 Plus FIO Software RAID/VROC SATA controller HPE NVMe Gen4 High Performance Low Latency Write Intensive SFF BC U.2 P5800X SSD drives HPE Slingshot SA210S Ethernet 200Gb 1-port PCIe NIC

Platform Information

Form Factor

2U rack

Chassis Types

8SFF (SAS/SATA) with optional SFF Universal Media Bay (P14609-B21), 8SFF midtray, and/or up to 6SFF rear drive bay options
24SFF bay (SAS/SATA) with optional 8SFF mid tray drives and/or up to 6SFF rear drive bay options to a total 38 SFF drives
8LFF with Universal Media Bay (standard), supporting 2SFF front, optional 8SFF mid tray or 4LFF mid tray, and up to 4LFF rear or 6SFF rear drive bay options
12LFF with optional 4LFF mid tray and up to 4LFF rear for a total 20LFF drives

Notes:

- The 8SFF chassis can be upgraded to support up to 24SFF (front) with a variety of 8SFF Drive Cages to select from, including 8SFF U.2 NVMe, 8SFF U.3 x4/x2 Trimode, 8SFF U.3 (x1 Trimode), and 8SFF SAS/SATA. See "Drive Cages" section within this document for options.

- The 8SFF chassis comes with an 8SFF SAS/SATA drive bay by default in bay 3. This can be replaced with other 8SFF drive bay options by selecting 8SFF Front Bay 3 Cage/Backplane Removal FIO Option (873763-B21) and then selecting a different 8SFF Drive Cage. See "Drive Cages" section within this document for options.

- The Universal Media Bay (P14609-B21) is only available as an option for the 8SFF chassis and can only be populated in Box 1.

- The 2 LFF primary and 2LFF secondary rear cages will consume all PCIe slots for the primary and secondary riser, respectively

- The 8 LFF chassis cannot be upgraded to 12 LFF front in the field.

System Fans

Standard – fan types included

Notes:

- On SFF Chassis only, 1P models ship with 4 standard fans. If a second processor (quantity 2 of CPU) is added, then Qty 1 Standard Fan Kit (P37042-B21) must be selected, which includes the additional 2 standard fans. However if Maximum Performance Fan Kit (P14608-B21) is selected – either for better cooling performance or due to the population of certain options that require it - then Standard Fan Kit (P37042-B21) need not be selected.

- The 12 LFF and 24 SFF chassis ship with 6 performance fans as standard.

- The 8 LFF chassis ships with 6 standard fans as standard. The population of certain options may require up

- The Maximum Performance fan kit (P14608-B21) is available to meet ambient temperature environments.

- In general, the Maximum Performance fan kit is required when rear drives, or >205W Processors SKUs, or Intel Optane Persistent Memory, or High Performance NVMe drives, or certain backplanes are populated. See notes under each option category or each individual option for specifics.

Standard Features

Processors – Up to 2 of the following depending on model.

The 2nd digit of the processor model number "x3xx" is used to denote the processor generation (i.e. 3=3rd generation Intel Scalable Series Processors)

Notes: Field upgrades from 1^st generation processors (x1xx) and/or 2^nd generation processors (x2xx) not supported.

"U" processors (i.e. 63xxU) only supported in single-socket configurations.

Processors with TDP equal to or greater than 150W require High Performance Heatsink (P27095-B21)

For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

This table covers the public Intel offering only.

Intel Xeon processors
Processor Suffix	Description	Offering
N	NFV Optimized	Targeted at Network Function Virtualization (NFV) workloads. Intel® SST-BF improves performance by directing base frequency to high priority/bottleneck cores. Other workloads may see throttling, more details to be provided in upcoming documentation.
S	Search Optimized	Optimized base frequency to address ‘search’ workloads. Other workloads may see throttling, more details to be provided in upcoming documentation.
U	1 Socket Optimized	Focused on single socket (1P) configurations, delivering performance at competitive price points. Does not support two socket (2P) arrangements.
V	VM Optimized	Fosters enhanced VM density, allowing to support more/largervirtual machines per host.
Y	Speed Select	Intel® SST-PP increases base frequency when fewer cores are enabled. Allows greater flexibility, deployment options and platform longevity.

- Notes: More than 1.5 TB memory per socket requires memory higher than 128 GB capacity. Also, DIMMs need to be selected in even quantities. Using odd quantity of DIMMs in configurations will cause memory to be unbalanced and may negatively impact system performance.

3rd Generation Intel® Xeon® Scalable Processor Family
Intel Xeon Models	CPU Frequency	Cores	L3 Cache (MB)	Power	UPI	DDR4	SGX Enclave size
Platinum 8352Y Processor	2.2GHz	32	48	205W	3 @ 11.2 GT/s	3200 MT/s	64GB
Platinum 8358 Processor	2.6GHz	32	48	250W	3 @ 11.2 GT/s	3200 MT/s	64GB
Platinum 8360Y Processor	2.4GHz	36	54	250W	3 @ 11.2 GT/s	3200 MT/s	64GB
Platinum 8368 Processor⁵	2.4GHz	38	57	270W	3 @ 11.2 GT/s	3200 MT/s	512GB
Platinum 8380 Processor	2.3GHz	40	60	270W	3 @ 11.2 GT/s	3200 MT/s	512GB
Platinum 8362 Processor⁴	2.8 GHz	32	48 MB	265W	3 @ 11.2 GT/s	3200 MT/s	64GB
Platinum 8358P Processor¹	2.6GHz	32	48	240W	3 @ 11.2 GT/s	3200 MT/s	8GB
Platinum 8352V Processor^1,2	2.1GHz	36	54	195W	3 @ 11.2 GT/s	3200 MT/s	8GB
Platinum 8351N Processor³	2.4GHz	36	54	225W	3 @ 11.2 GT/s	3200 MT/s	64GB
Platinum 8352S Processor²	2.2GHz	32	48	205W	3 @ 11.2 GT/s	3200 MT/s	512GB
Platinum 8352M Processor^2,4,6	2.3 GHz⁶ 2.4 GHz 2.6 GHz	32⁶ 28 24	48 MB	185W⁴ 185W 185W	3 @ 11.2 GT/s	3200 MT/s	64GB

Notes:

- Processors with TDP equal to or greater than 150W require High Performance Heatsink (P27095-B21)

- 8-Channel DDR4 @ 3200 MT/s (lower DDR4 speed may be used in segment optimized processors (i.e. Cloud, NFV, etc).

- 4TB max RAM per socket.Support for Intel Optane Persistent Memory 200 Series, enabling up to 6TB memory per socket (does not work with SGX).

- 2 socket capable, 3 UPI @ 11.2 GT/s.

- 64 Features: Advanced RAS (except 8358P), AVX-512 2 FMA, TME-MT 64 keys.

- Speed Select Performance Profile processors ("Y") default to values in bold.

- ¹Deterministic base frequency rating only applicable to VM workloads. Other workloads may see throttling.

- ²Supports Intel® Speed Select Performance Profile (SST-P), even though not being a "Y" processor.

- ³Single socket capable even though not being a "U" processor. No dual socket support.

- ⁴Does not support Intel Speed Select Technology – Base Frequency (SST-BF).

- ⁵Does not support Sub-NUMA 2 (SNC2).

- ⁶Default Speed Select Performance Profile value.

- DIMMs need to be selected in even quantities. Using odd quantity of DIMMs in configurations will cause memory to be unbalanced and may negatively impact system performance.

3rd Generation Intel® Xeon® Scalable Processor Family
Intel Xeon Models	CPU Frequency	Cores	L3 Cache (MB)	Power	UPI	DDR4	SGX Enclave size
Gold 6354 Processor	3.0 GHz	18	39 MB	205W	3 @ 11.2 GT/s	3200 MT/s	64GB
Gold 6348 Processor	2.6 GHz	28	42 MB	235W	3 @ 11.2 GT/s	3200 MT/s	64GB
Gold 6346 Processor	3.1 GHz	16	36 MB	205W	3 @ 11.2 GT/s	3200 MT/s	64GB
Gold 6338N Processor¹	2.2 GHz	32	48 MB	185W	3 @ 11.2 GT/s	2667 MT/s	64GB
Gold 6338 Processor	2.0 GHz	32	48 MB	205W	3 @ 11.2 GT/s	3200 MT/s	64GB
Gold 6330N Processor¹	2.2 GHz	28	42 MB	165W	3 @ 11.2 GT/s	2667 MT/s	64GB
Gold 6330 Processor	2.0 GHz	28	42 MB	205W	3 @ 11.2 GT/s	2933 MT/s	64GB
Gold 6326 Processor	2.9 GHz	16	24 MB	185W	3 @ 11.2 GT/s	3200 MT/s	64GB
Gold 6342 Processor	2.8 GHz	24	36 MB	230W	3 @ 11.2 GT/s	3200 MT/s	64GB
Gold 6336Y Processor	2.4 GHz 2.9 GHz 3.1 GHz	24 12 8	36 MB	185W 150W 150W	3 @ 11.2 GT/s	3200 MT/s	64GB
Gold 6334 Processor	3.6 GHz	8	18 MB	165W	3 @ 11.2 GT/s	3200 MT/s	64GB
Gold 6314U Processor²	2.3 GHz	32	48 MB	205W	N/A	3200 MT/s	64GB
Gold 6312U Processor²	2.4 GHz	24	36 MB	185W	N/A	3200 MT/s	64GB

Notes:

- Processors with TDP equal to or greater than 150W require High Performance Heatsink (P27095-B21)

- 8-Channel DDR4 @ 3200 MT/s (lower DDR4 speed may be used in segment optimized processors (i.e. Cloud, NFV, etc).

- DIMMs need to be selected in even quantities. Using odd quantity of DIMMs in configurations will cause memory to be unbalanced and may negatively impact system performance.

- Support for Intel Optane Persistent Memory 200 Series, enabling up to 6TB memory per socket (does not work with SGX).

- 2 socket capable, 3 UPI @ 11.2 GT/s.

- 64 lanes PCIe 4.0, advanced RAS.Features: Advanced RAS, AVX-512 2 FMA, TME-MT 64 keys.

- ¹Deterministic base frequency rating only applicable for NFV workloads. Other workloads may see throttling.

- ²Single socket capable, no dual socket support

3rd Generation Intel® Xeon® Scalable Processor Family
Intel Xeon Models	CPU Frequency	Cores	L3 Cache	Power	UPI	DDR4		SGX Enclave size
Gold 5320 Processor	2.2 GHz	26	39 MB	185W	3 @ 11.2 GT/s		2933 MT/s	64GB
Gold 5318Y Processor	2.1 GHz³ 1.9GHz 2.0GHz	24³ 24 22	36 MB	165W³ 150W 150W	3 @ 11.2 GT/s		2933 MT/s	64GB
Gold 5318S Processor¹	2.1 GHz³ 1.9GHz 2.0GHz	24³ 24 22	36 MB	165W³ 150W 150W	3 @ 11.2 GT/s		2933 MT/s	512GB
Gold 5318N Processor^1,2	2.1 GHz³ 2.0GHz	24³ 20	36 MB	150W³ 135W	3 @ 11.2 GT/s		2667 MT/s	64GB
Gold 5317 Processor	3.0 GHz	12	18 MB	150W	3 @ 11.2 GT/s		2933 MT/s	64GB
Gold 5315Y Processor	3.2 GHz³ 3.2GHz 3.4GHz	8³ 6 4	12 MB	140W³ 125W 115W	3 @ 11.2 GT/s		2933 MT/s	64GB

Notes:

- Processors with TDP equal to or greater than 150W require High Performance Heatsink (P27095-B21)

- 8-channel DDR4 @ 2933 MT/s (lower DDR4 speed may be used in segment optimized processors (i.e. NFV, etc).

- DIMMs need to be selected in even quantities. Using odd quantity of DIMMs in configurations will cause memory to be unbalanced and may negatively impact system performance.

- Support for Intel Optane Persistent Memory 200 Series, enabling up to 6TB memory per socket (does not work with SGX).

- 2 sockets capable, 3 UPI @ 11.2 GT/s.

- Advanced RAS, AVX-512 2 FMA, SGX 64GB, TME-MT 64 keys.

- ¹Supports Intel® Speed Select Performance Profile (SST-P), even though not being a "Y" processor.

- ²Deterministic base frequency rating only applicable for NFV workloads. Other workloads may see throttling.

- ³Default Speed Select Performance Profile value.

3rd Generation Intel® Xeon® Scalable Processor Family
Intel Xeon Models	CPU Frequency	Cores	L3 Cache	Power	UPI	DDR4	SGX Enclave size
Silver 4316 Processor	2.3 GHz	20	30 MB	150W	2 @ 10.4 GT/s	2667 MT/s	8GB
Silver 4314 Processor¹	2.4 GHz	16	24 MB	135W	2 @ 10.4 GT/s	2667 MT/s	8GB
Silver 4310 Processor	2.1 GHz	12	18 MB	120W	2 @ 10.4 GT/s	2667 MT/s	8GB
Silver 4309Y Processor	2.8 GHz² 2.6GHz 2.3GHz	8² 8 8	12 MB	105W² 95W 85W	2 @ 10.4 GT/s	2667 MT/s	8GB

Notes:

- Processors with TDP equal to or greater than 150W require High Performance Heatsink (P27095-B21)

- 8-channel DDR4 @ 2667 MT/s.

- DIMMs need to be selected in even quantities. Using odd quantity of DIMMs in configurations will cause memory to be unbalanced and may negatively impact system performance.

- 2 sockets capable, 2 UPI @ 10.4 GT/s.

- Standard RAS, AVX-512 2 FMA, SGX 8GB, TME-MT 64 keys.

- ¹Supports Intel Optane Persistent Memory 200 Series, enabling up to 6TB memory per socket (does not work with SGX).

- ²Default Speed Select Performance Profile value.

Chipset

Intel C621A Chipset

Notes:

- For more information regarding Intel® chipsets, please see the following URL: https://www.intel.com/content/www/us/en/products/chipsets/server-chipsets.html

On System Management Chipset

HPE iLO 5 ASIC

Read and learn more in the iLO QuickSpecs.

Memory

One of the following depending on model.

Type

HPE DDR4 SmartMemory,

Registered (RDIMM)

DIMM Slots Available

16 DIMM slots per processor, 8channels per processor, 2 DIMMs per channel

Maximum capacity

(LRDIMM)

8.0 TB

32 x 256 GB LRDIMM @ 3200 MT/s

Maximum capacity

(RDIMM)

2.0 TB

32 x 64 GB RDIMM @ 3200 MT/s

Maximum capacity

(Intel Optane Persistent Memory for HPE)

8.0 TB

16 X 512 GB Memory Modules

- Notes: The maximum memory speed is limited by the processor selection. Also, DIMMs need to be selected in even quantities. Using odd quantity of DIMMs in configurations will cause memory to be unbalanced and may negatively impact system performance.

Expansion Slots

Primary Riser

Notes:

- Bus width indicates the number of physical electrical lanes running to the connector.

- There are 3 types of risers supported on Primary Slot

- x16 cards installed on x8 slots could observe sub-optimal performance.

Primary Riser1
Slots #	Technology	Bus Width	Connector Width	Slot Form Factor	Notes
1	PCIe 4.0	X8	X16	Full-height,full-length slot	Proc 1
2	PCIe 4.0	X16	X16	Full-height,full-length slot	Proc 1
3	PCIe 4.0	X8	X16	Full-height,half-length slot	Proc 1

Primary Riser2
Slots #	Technology	Bus Width	Connector Width	Slot Form Factor	Notes
1	PCIe 4.0	X16	X16	Full-height,full-length slot	Proc 1
2	PCIe 4.0	X16	X16	Full-height,full-length slot	Proc 1
3	NA	NA	NA	NA	NA

Primary Riser3
Slots #	Technology	Bus Width	Connector Width	Slot Form Factor	Notes
1**	NA	NA	NA	NA	NA
1	PCIe 4.0	X16	X16	Full-height,full-length slot	Proc 1
2	PCIe 4.0	X16	X16	Full-height,full-length slot	Proc 1
3	PCIe 4.0	X16	X16	Full-height,half-length slot	Proc 1

Notes: ** Default Slot1 on the Primary Riser3 is empty and not available.It requires P14600-B21 in conjunction with the Primary Riser3 to add additional x16 PCIe Gen4 in slot1.

Secondary Riser:

Notes:

- Bus Width Indicates the number of physical electrical lanes running to the connector.

- There are 3 types of risers support on Secondary Slot

- x16 cards installed on x8 slots could observe sub-optimal performance.

Secondary Riser1
Slots #	Technology	Bus Width	Connector Width	Slot Form Factor	Notes
4	PCIe 4.0	X8	X16	Full-height,full-length slot	Proc 2
5	PCIe 4.0	X16	X16	Full-height,full-length slot	Proc 2
6	PCIe 4.0	X8	X16	Full-height,half-length slot	Proc 2

Secondary Riser2
Slots #	Technology	Bus Width	Connector Width	Slot Form Factor	Notes
4	PCIe 4.0	X16	X16	Full-height,full-length slot	Proc 2
5	PCIe 4.0	X16	X16	Full-height,full-length slot	Proc 2
6	NA	NA	NA	NA	NA

Secondary Riser3
Slots #	Technology	Bus Width	Connector Width	Slot Form Factor	Notes
4*	NA	NA	NA	NA	NA
4	PCIe 4.0	X16	X16	Full-height,full-length slot	Proc 2
5	PCIe 4.0	X16	X16	Full-height,full-length slot	Proc 2
6	PCIe 4.0	X16	X16	Full-height,half-length slot	Proc 2

Notes: * Default Slot4 on the Secondary Riser3 is empty and not available.It requires P14600-B21 in conjunction with the Secondary Riser3 to add additional x16 PCIe Gen4 in slot4

Tertiary Riser:

Notes:

- Bus Width Indicates the number of physical electrical lanes running to the connector.

- There are 2 types of risers support on Tertiary Slot

- x16 cards installed on x8 slots could observe sub-optimal performance.

Tertiary Riser1
Slots #	Technology	Bus Width	Connector Width	Slot Form Factor	Notes
7	PCIe 4.0	X16	X16	Full-height,full-length slot	Proc 2
8	NA	NA	NA	NA	NA

Tertiary Riser2
Slots #	Technology	Bus Width	Connector Width	Slot Form Factor	Notes
7	PCIe 4.0	X8	X16	Full-height,full-length slot	Proc 2
8	PCIe 4.0	X8	X16	Full-height,full-length slot	Proc 2

Graphics

Integrated Video Standard

Video modes up to 1920 x 1200@60Hz (32 bpp)
16MB Video Memory

HPE iLO 5 on system management memory

32 MB Flash
4 Gbit DDR 3 with ECC protection

Maximum Internal Storage

Drive	Capacity	Configuration
Hot Plug SFF SAS HDD	581.4 TB	24+8+6 x 15.3 TB* (with optional rear SFF drive cage)
Hot Plug SFF SATA HDD	291.84 TB	24+8+6 x 7.68 TB (with optional SFF drive cage)
Hot Plug LFF SAS HDD	360 TB	12+4+4 x 18 TB (with optional mid –tray and rear LFF primary riser drive cage, plus rear LFF tertiary riser drive cage)
Hot Plug LFF SATA HDD	360 TB	12+4+4 x 18 TB (with optional mid –tray and rear LFF primary riser drive cage, plus rear LFF tertiary riser drive cage)
Hot Plug SFF NVMe PCIe SSD	385.92 TB	24 x 15.36TB + 8 x 1.92TB<12W + 2 x 960GB<10W

Notes: *UFF drives are also supported.

Internal Storage Devices

One of the following depending on model

Optical Drive

Ships standard in Performance Models

Optional: DVD-ROM, DVD-RW

Hard Drives

None ship standard

Power Supply

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes:

- Available in 94% and 96% efficiency.

- Also available in -48VDC and 227VAC/380VDC power inputs.

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: 1 available in 94% efficiency.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Plus Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

The standard 6-foot IEC C-13/C-14 jumper cord (A0K02A) is included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page. o review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

Storage Controllers

The Gen10 Plus controller naming framework has been updated to simplify identification as depicted below.

For a more detailed breakout of the available Gen10 Plus Smart Array controllers visit the sites:

HPE Smart Array Gen10 Plus MegaRAID Controllers Data Sheet Or HPE Smart Array Gen10 Plus SmartRAID Controllers Data Sheet

One of the following depending on model

Software RAID

HPE Smart Storage SR100i Gen10 Plus SW RAID

Notes:

- HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.

- HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled.

- The S100i uses 14 embedded SATA ports, but only 12 ports are accessible.

- The S100i supports Windows only.

- Supports up to 2 NVMe drives maximum via system board direct connection only.

- Does not support CM6, CD6, P4xxx, and PE80xx NVMe drives.

- For Linux users, HPE offers a solution that uses in-distro open-source software to create a two-disk RAID 1 boot volume. For more information visit: https://downloads.linux.hpe.com/SDR/project/lsrrb/

Intel® Virtual RAID on CPU (Intel® VROC)

Notes: Requires selection of Second Processor.

Essential RAID Controller

HPE Smart Array E208i-a SR Gen10 Controller
HPE Smart Array E208i-p SR Gen10 Controller
HPE Smart Array E208e-p SR Gen10 Controller

Performance RAID Controller

HPE Smart Array P408i-a SR Gen10 Controller
HPE Smart Array P408i-p SR Gen10 Controller
HPE Smart Array P408e-p SR Gen10 Controller
HPE Smart Array P816i-a SR Gen10 Controller

Notes:

- Performance RAID Controllers require the HPE Smart Hybrid Capacitor (P02377-B21) or the HPE Smart Storage Battery (P01366-B21) which are sold separately.

- For additional details, please see https://www.hpe.com/psnow/doc/a00047736enw?jumpid=in_hpesitesearch

Tri-Mode Controller

HPE MR416i-p Gen10 Plus Controller
HPE MR416i-a Gen10 Plus 12G Controller
HPE MR216i-p Gen10 Plus 12G Controller
HPE MR216i-a Gen10 Plus 12G Controller
HPE SR932i-p Gen10 Plus Controller¹

Notes:

- PE80xx NVMe drives are not supported.

- ¹Requires x16 riser slot

HPE SR416i-a Gen10 Plus Controller

Notes: PE80xx NVMe drives are not supported.

Interfaces

Serial	Optional, rear
Display Port	1 optional front display port via Universal Media Bay
VGA Port	1 standard, rear for all chassis. 1 Optional front display port (Via Universal Media Bay) Notes: Both ports are not active simultaneously.
Network Ports	None standard. Choice of OCP networking card or stand-up networking card required. BTO models will come pre-selected with a primary OCP networking card.
HPE iLO Remote Management Network Port	1 Gb Dedicated, rear
Front iLO Service Port	1 standard (Not available on 12 LFF chassis or when SID is ordered, note iLO dongle required. Hewlett Packard Enterprise recommends the HPE USB to Ethernet Adapter (part number Q7Y55A).)
Micro SD Slot	Optional via HPE 32GB microSD RAID1 USB Boot Device Notes: The Micro SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered.
USB 3.0	Up to 5 total: 1 front, 2 rear, 2 internal (secure), 2 optional USB 2.0 front via Universal Media Bay, or standard on 8LFF chassis
SID (Systems Insight Display)	Optional Notes: Not shipping as standard. Available as a CTO option or as a field upgrade (P27096-B21).

Operating Systems and Virtualization Software Support for ProLiant Servers

3rd Generation Intel® Xeon® Scalable Processor Family
Windows Server 2019: Essentials, Standard, Datacenter
Windows Server 2016: Essentials, Standard, Datacenter
Microsoft Hyper-V Server: 2016 & 2019
VMware vSphere 6.7 U3 w/P03, 7.0 U2

Notes: SD Card/USB media can still be used as a standalone boot option through all 7.x releases via published Customer Advisory https://support.hpe.com/hpesc/public/docDisplay?docId=emr_na-a00118986en_us For any major release beyond VMware ESXi 7.x, VMware will require M.2 or another local persistent device as the standalone boot option.

Red Hat Enterprise Linux (RHEL) 7.9 & 8.2 – Includes KVM
SUSE Linux Enterprise Server (SLES) 12 SP5, 15 SP2 (includes Xen & KVM)
Ubuntu 20.04 LTS
Oracle Linux 7.9 (UEK5 and UEK6)

HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.

Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

Secure Boot and Secure Start enable for enhanced security
Embedded UEFI Shell
Operating system specific functionality
Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
Support for > 2.2 TB (using GPT) boot drives
PXE boot support for IPv6 networks
USB 3.0 Stack
Workload Profiles for simple performance optimization

UEFI Boot Mode only:

TPM 2.0 Support
iSCSI Software Initiator Support.
NVMe Boot Support
HTTP/HTTPs Boot support as a PXE alternative.
Platform Trust Technology (PTT) can be enabled.
Boot support for option cards that only support a UEFI option ROM

Notes:

- For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

- UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant Gen10 Plus Server.

Industry Standard Compliance

ACPI 6.3 Compliant
PCIe 4.0 Compliant
WOL Support
Microsoft® Logo certifications
PXE Support
VGA/Display Port

Notes: This support is on the optional Universal Media Bay.

USB 3.0 Compliant (internal)
USB 2.0 Compliant (external ports via SUV)

Notes: This support is on the optional Universal Media Bay.

Energy Star
SMBIOS 3.2
Redfish API
IPMI 2.0
Secure Digital 4.0
TPM 1.20 and 2.0 Support
Advanced Encryption Standard (AES)
Triple Data Encrytion Standard (3DES)
SNMP v3
TLS 1.2
DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
Active Directory v1.0
ASHRAE A3/A4

Notes: For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit http://www.hpe.com/servers/ashrae

EU Lot9

Notes: European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen10 servers are compliant with Lot9 requirements.

Notes: Please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information regarding HPE Lot 9 conformance.

UEFI (Unified Extensible Firmware Interface Forum) 2.6

Notes: UEFI is the default for the DL380 Gen10 Plus. Legacy mode can be selected in the field or as a CTO option (758959-B22); some configuration restrictions apply.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi.

Intelligent Provisioning

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Learn more at http://www.hpe.com/servers/intelligentprovisioning

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs.

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities.

Learn more at http://www.hpe.com/servers/iLOamplifierpack.

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview.

HPE Systems Insight Manager (HPE SIM)

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. Learn more at http://www.hpe.com/info/hpesim.

Security

UEFI Secure Boot and Secure Start support
Tamper-free updates – components digitally signed and verified
Immutable Silicon Root of Trust
Ability to rollback firmware
FIPS 140-2 validation
Secure erase of NAND/User data
Common Criteria certification
TPM (Trusted Platform Module) 1.2 option
Configurable for PCI DSS compliance
TPM (Trusted Platform Module) 2.0 option
Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
Bezel Locking Kit option
Support for Commercial National Security Algorithms (CNSA)
Chassis Intrusion detection option
Secure Recovery – recover critical firmware to known good state on detection of compromised firmware

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.
