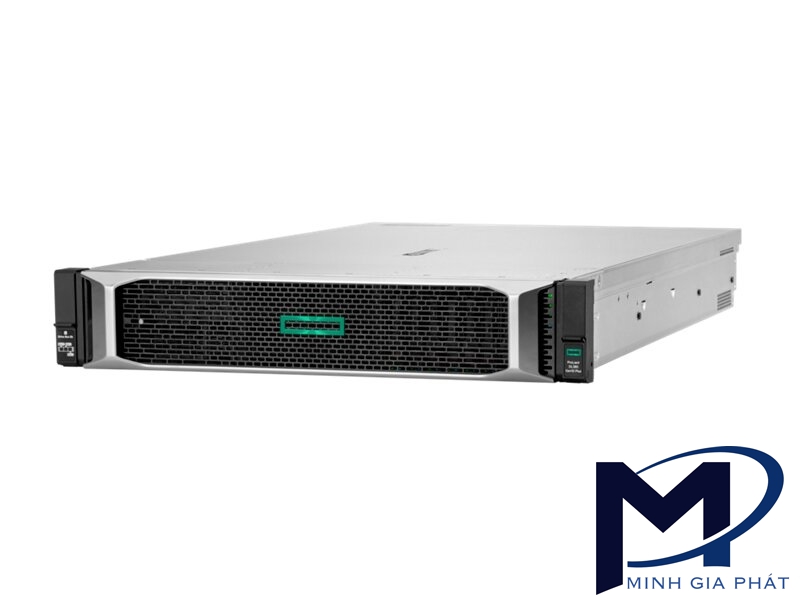

HPE ProLiant DL345 Gen10 Plus server

The HPE ProLiant DL345 Gen10 Plus server is redefining price/performance with the new math for virtualized compute. Powered by the latest AMD® EPYC® 7003 Series Processors, the HPE ProLiant DL345 Gen10 Plus server offers greater processing power, faster memory speeds up to 3200 MT/s. and increased data transfer rates with PCIe Gen4 capabilities.

This 1P, 2U server has been designed with flexibility while delivering a high core count and large memory footprint. Choose this purpose-built platform for virtualization, High Performance Compute and memory centric workloads.

HPE ProLiant DL345 Gen10 Plus 8 SFF  Server- Front View

1.

Quick removal access panel

7.

USB 3.1 Gen1

2.

Power On/Standby button and system power LED button

8.

Serial label pull tag

3.

Health LED

9.

Drive Bay 3. 8SFF SAS/SATA shown (Box 3)

4.

NIC status

10.

Drive Bay 2. Blank shown(Box 2)

5.

Unit ID button

11.

Drive Bay 1. Blank shown (Box 1)

6.

iLO front service port

Notes:

- 8 SFF SAS/SATA or 8 SFF U.2/U.3 optional

- 8 SFF SAS/SATA or 8 SFF U.2/U.3 optional

- 8 SFF SAS/SATA or 8 SFF U.2/U.3 optional

HPE ProLiant DL345 Gen10 Plus server - Rear View

1.

Primary Riser.¹

8.

Optional serial port (not shown)

2.

Rear Drive Cage (2SFF SAS/SATA/NVMe optional)

9.

UID LED

3.

Secondary Riser.²

10.

USB connectors 3.1 Gen1 (2)

4.

Power supply power LED

11.

Dedicated iLO management port

5

Power supply power connection

12.

VGA Connector

6.

HPE Flexible Slot Power Supply bay 1

13.

OCP 3.0 Slot

7.

HPE Flexible Slot Power Supply bay 2

Notes:

- ¹ PCIe Slots 1-2 top to bottom, riser shipped standard, not shown.

- ² PCIe Slots 3-4 top to bottom, not shown.

HPE ProLiant DL345 Gen10 Plus server - Internal View

8SFF chassis

1

DDR4 DIMM slots

7

(Under) Serial Port Connector

2

Optional HPE Flexible Smart Array Controller (Not shown)

8

Primary PCIe riser, standard

3

Hard drive backplane power connectors

9

(Under) OCP 3.0 Slot

4

Chassis intrusion detection connector

10

Internal USB 3.1 Gen1 connector

5

Hot Plug redundant HPE Flexible Slot Power supplies

11

Fan cage shown with 6 Performance Hot-plug fans

6

Connection for (optional) secondary riser

12

Processor (heatsink shown)

What’s New:

• Supports the latest AMD EPYC 7003 Series processor
• Support for Tri-mode storage controllers for SAS/SATA/NVMe drives
• New Basic Carrier SAS/SATA/NVMe drives.
• European Union (EU) Lot 9 regulation, please visit:

https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information

Platform Information

Form Factor

• 2U rack

Chassis Types

• 8 SFF with optional SFF or NVMe drive bay options
• 24 SFF bay with and 2 SFF rear drive bay option to total 26 SFF drives
• 8 LFF/12LFF chassis supporting SAS/SATA

System Fans

Standard – fan types included

• The 8 LFF and 8 SFF without standard fans included.
• The 24 SFF chassis ships with 6 high performance fans as standard.
• Max performance fan kits are required for >280w Processors SKUs, 12LFF/24SFF configurations, NVMe drives, 2SFF rear drives, some 100GbE & 200GbE networking cards, graphics cards, InfiniBand cards or if PCIe accelerators are being used.

Processors – One of the following depending on model.

Notes: For more information regarding AMD EPYC processors, please see the following: https://www.amd.com/en/products/epyc

Notes:

- All AMD EPYC processors can support up to 4TB of memory each.

- Rome processors can’t support 2 DIMM per channel @3200MT/s.  Rome processors support 2DPC @2933MT/s.

Chipset

No chipset – System on Chip (SoC) design.

On System Management Chipset

HPE iLO 5 ASIC

Read and learn more in the iLO QuickSpecs.

Memory

One of the following depending on model

Notes: The maximum memory speed is limited by the processor selection.

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single

DRAM chip.

Expansion Slots

Primary Riser

Notes:

- Bus width indicates the number of physical electrical lanes running to the connector.

- There are 2 types of risers supported on Primary Slot

Notes: * This riser kit cannot be selected as standalone. Must be selected along with HPE DL345 Gen10P U.3 24NVMe DA FIO Kit

Secondary Riser

Notes:

- Bus Width Indicates the number of physical electrical lanes running to the connector.

- There are 3 types of risers support on Secondary Slot

- The HPE DL345 Gen10+ 2x8 Slim Sec Riser Kit (P38643-B21) not listed here, cannot be selected as standalone. Must be selected along with HPE DL345 Gen10P U.3 24NVMe DA FIO Kit

Storage Controllers

The Gen10/Gen10 Plus controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10/Gen10 Plus Smart Array controllers visit the

HPE Smart Array Gen10 Controllers Data Sheet.

HPE also launched Tri-Mode controllers which will support NVMe U.3/U.2 drives as wells as SAS/SATA drives.  Please see below list for the tri-mode controllers supported on the server.

NVMe Boot Device

• HPE NS204i-p NVMe PCIe3 OS Boot Device

Software RAID – HPE Smart Storage SR100i SR Gen10 Plus SW RAID

• All models feature an embedded storage controller, capable of operating on AHCI or SR100i modes, with embedded software supporting RAID for either up to 8 SATA drives or 2 U.3 NVMe SSDs.
• HPE Smart Storage SR100i SR Gen10 Plus SW RAID will operate in UEFI mode only. Legacy Mode (758959-B22) and SR100i Gen10 Plus SW RAID CAN NOT be selected together. For legacy support, and additional controller will be needed.
• Embedded SATA controller by default will work in AHCI Mode. HPE Smart Storage SR100i SR Gen10 Plus SW RAID can be enabled by selecting HPE SR100i Gen10 Plus Software RAID (P28417-B21).
• Supports Microsoft Windows Server only.

Notes: Requires SATA drives installed on following server/backplanes and drive bay position to support SR100i.

Notes: Requires NVMe drives installed on following backplanes and drive bay position to support SR100i.

Essential RAID Controller

• HPE Smart Array E208i-a SR G10 LH Controller
• HPE Smart Array E208e-p SR Gen10 Controller
• HPE Smart Array E208e-p SR Gen10 Controller

Performance RAID Controller

• HPE Smart Array P408i-a SR G10 LH Controller
• HPE Smart Array P408e-p SR Gen10 Controller
• HPE Smart Array P408i-p SR Gen10 Controller
• HPE Smart Array P816i-a SR G10 LH Controller

Notes: Performance RAID Controllers require the HPE 12W Smart Storage Battery (782961-B21) which is sold separately.

Tri-Mode RAID Controller

• HPE Tri-Mode MR216i-a Gen10 Plus Controller
• HPE Tri-Mode MR216i-p Gen10 Plus Controller
• HPE Tri-Mode MR416i-a Gen10 Plus Controller
• HPE Tri-Mode MR416i-p Gen10 Plus Controller
• HPE Tri-Mode SR416i-a Gen10 Plus Controller
• HPE Tri-Mode SR932i-p Gen10 Plus Controller

Internal Storage Devices

One of the following depending on model

Optical Drive

• None ship standard

Hard Drives

• None ship standard

Graphics

Integrated Video Standard

• Video modes up to 1920 x 1200@60Hz (32 bpp)
• 16MB Video Memory

HPE iLO 5 on system management memory

• 32 MB Flash
• 4 Gbit DDR 3 with ECC protection

Power Supply

• HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: Available in 94% Power Efficiency.

• HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: Available in 94%. Power Efficiency

• HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

Notes:

- Available in 96% Power Efficiency

- 200-240VAC power input only.

• HPE 800W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit

Notes:

- Available in 94% Power Efficiency

- 277VAC power input.

• HPE 800W Flex Slot 48VDC Hot Plug Low Halogen Power Supply Kit

Notes:

- Available in 94% Power Efficiency

- -48VDC power input.

• HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes:

- Available in 94% Power Efficiency.

- 200-240VAC power input only.

• HPE 1600W 48VDC Power Supply Kit

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Plus Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

Interfaces

Operating Systems and Virtualization Software Support for ProLiant Servers

• Windows Server 2016
• Windows Server 2019 (Most Recent Version)
• Windows Server 2022
• VMware ESXi 6.7 U3
• VMware ESXi 7.0 U1/U2
• SUSE Linux Enterprise Server (SLES) 12 SP5
• SUSE Linux Enterprise Server (SLES) 15 SP2
• Red Hat Enterprise Linux (RHEL)

- AMD EPYC 7003 Series: 8.3

- AMD EPYC 7002 Series: 7.6, 8.0

• Citrix Hypervisor 8.2
• Ubuntu 20.04 LTS

Notes: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server.

 https://www.hpe.com/us/en/servers/server-operating-systems.html

HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 Plus servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.

Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

• Secure Boot and Secure Start enable for enhanced security
• Operating system specific functionality
• Support for > 2.2 TB (using GPT) boot drives
• USB 3.0 Stack

HPE Server UEFI/Legacy ROM

• Embedded UEFI Shell
• Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
• PXE boot support for IPv6 networks
• Workload Profiles for simple performance optimization

UEFI Boot Mode only

• TPM 2.0 Support
• NVMe Boot Support
• iSCSI Software Initiator Support.
• HTTP/HTTPs Boot support as a PXE alternative.
• Boot support for option cards that only support a UEFI option ROM

Notes: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

Industry Standard Compliance

• ACPI 6.1 Compliant
• PCIe 4.0 Compliant
• WOL Support
• Microsoft® Logo certifications
• PXE Support
• VGA/Display Port
• USB 3.1 Gen1 Compliant (internal)
• USB 2.0 Compliant (external ports)
• Energy Star
• SMBIOS 3.1
• UEFI 2.6
• Redfish API
• IPMI 2.0

• Secure Digital 2.0
• Advanced Encryption Standard (AES)
• Triple Data Encrytion Standard (3DES)
• SNMP v3
• TLS 1.2
• DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
• Active Directory v1.0
• ASHRAE A3/A4

Notes: For additional technical thermal details regarding ambient temperatures, humidity and features support please visit: http://www.hpe.com/servers/ashrae.

• UEFI (Unified Extensible Firmware Interface Forum)

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi.

Intelligent Provisioning

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Learn more at http://www.hpe.com/servers/intelligentprovisioning.

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers  simplified server management automation such as configuration and maintenance tasks based on modern industry standards.

Learn more at http://www.hpe.com/info/restfulapi.

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers.  Learn more at http://www.hpe.com/servers/ahs.

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).  Learn more at

https://www.hpe.com/us/en/servers/smart-update.html.

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 , Gen10 & Gen10 Plus HPE servers at unmatched speed and scale.  Use with an iLO Advanced License to unlock full capabilities.

Learn more at http://www.hpe.com/servers/iLOamplifierpack.

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview.

HPE Systems Insight Manager (HPE SIM)

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates.  Learn more at http://www.hpe.com/info/hpesim.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.

Security

• UEFI Secure Boot and Secure Start support
• Immutable Silicon Root of Trust
• FIPS 140-2 validation (iLO 5 certification in progress)
• Common Criteria certification (iLO 5 certification in progress)
• Configurable for PCI DSS compliance
• Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
• Support for Commercial National Security Algorithms (CNSA)
• Tamper-free updates – components digitally signed and verified
• Secure Recovery – recover critical firmware to known good state on detection of compromised firmware
• Ability to rollback firmware
• Secure erase of NAND/User data
• TPM (Trusted Platform Module) 2.0 option
• Bezel Locking Kit option
• Chassis Intrusion detection option
