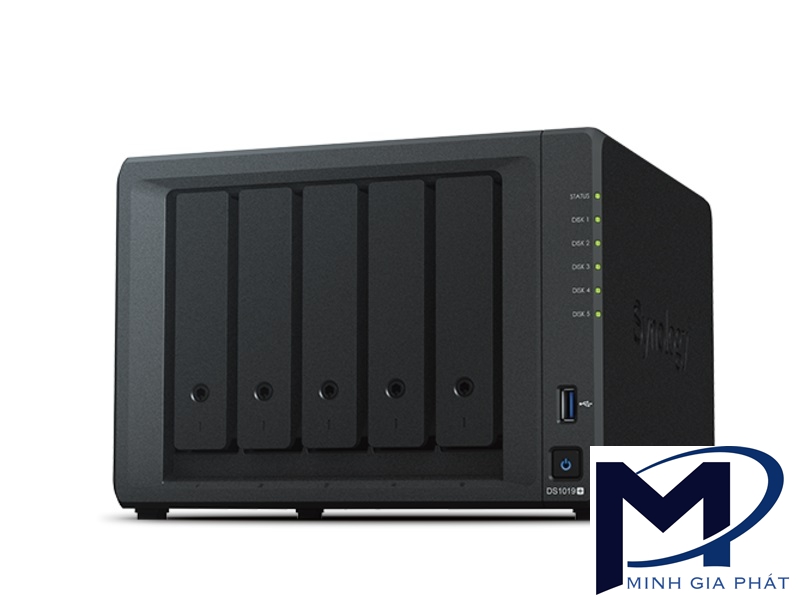

Synology DS1019+

Giá (chưa có VAT): Liên hệ

Mã sản phẩm: DS1019+

Hãng sản xuất : SYNOLOGY
Bảo hành : 36
Tình trạng: Còn hàng
Lượt xem: 100

Chi tiết sản phẩm
Thông số kĩ thuật

CPU Model : Intel Celeron J3455 (Quad Core 1.5 burst up to 2.3 GHz)
System Memory : 8 GB (2 x 4GB) DDR3L
Drive Bay(s) : Support 5 bayS 3.5"/2.5” SATA HDD/SSD, M.2 2280 NVMe SSD
Supported RAID Type : Synology Hybrid RAID/Basic/JBOD/RAID 0/RAID 1/RAID 5/RAID 6/RAID 10
USB 3.0 Port 2
eSATA Port 1
RJ-45 1GbE LAN Port: 2 (with Link Aggregation / Failover support)
Power Supply Unit / Adapter : 120W
Warranty : 3 Years

Hardware Specifications
CPU
CPU Model	Intel Celeron J3455
CPU Architecture	64-bit
CPU Frequency	Quad Core 1.5 burst up to 2.3 GHz
Hardware Encryption Engine (AES-NI)
Hardware Transcoding Engine	H.264 (AVC), H.265 (HEVC), MPEG-2 and VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 30
Memory
System Memory	8 GB DDR3L
Memory Module Pre-installed	8 GB (4 GB x 2)
Total Memory Slots	2
Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage
Drive Bays	5
Maximum Drive Bays with Expansion Unit	10
M.2 Drive Slots	2 (NVMe)
Compatible Drive Type* (See all supported drives)	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe SSD
Maximum Internal Raw Capacity	70 TB (14 TB drive x 5) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units	140 TB (70 TB + 14 TB drive x 5) (Capacity may vary by RAID types)
Maximum Single Volume Size	108 TB
Hot Swappable Drive
Notes	"Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more)
External Ports
RJ-45 1GbE LAN Port	2 (with Link Aggregation / Failover support)
USB 3.0 Port	2
eSATA Port	1
File System
Internal Drives	Btrfs EXT4
External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT*
Notes	exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth)	166 mm x 230 mm x 223 mm
Weight	2.54 kg
Others
System Fan	92 mm x 92 mm x 2 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Brightness adjustable front LED indicators
Power Recovery
Noise Level*	20.8 dB(A)
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter	120W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption*	38.59 W (Access) 13.32 W (HDD Hibernation)
British Thermal Unit	131.67 BTU/hr (Access) 45.45 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification	EAC VCCI CCC RCM FCC CE BSMI
Warranty	3 Year Hardware Warranty
Notes	Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications ( See more )
Storage Management
Maximum Internal Volume Number	512
Maximum iSCSI Target Number	128
Maximum iSCSI LUN	256
iSCSI LUN Clone/Snapshot, Windows ODX
SSD Read/Write Cache (White Paper)
SSD TRIM
Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10
Volume Expansion by Adding a HDD	Synology Hybrid RAID JBOD RAID 5 RAID 6 (with Expansion Unit)
Global Hot Spare Supported RAID Type	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 (with Expansion Unit) RAID 10 (with Expansion Unit)
File Services
File Protocol	CIFS/AFP/NFS/FTP/WebDAV
Maximum Concurrent CIFS/AFP/FTP Connections	2,000
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Account & Shared Folder
Maximum Local User Accounts	2,048
Maximum Local Groups	256
Maximum Shared Folder	512
Maximum Shared Folder Sync Tasks	32
High Availability Manager
Log Center
Syslog Events per Second	800
Virtualization
VMware vSphere 6 with VAAI
Windows Server 2016
Citrix Ready
OpenStack
Add-on Packages (learn more about the complete add-on package list)
Antivirus by McAfee (Trial)
Central Management System
Chat
Maximum Users	1,500
Notes	The number of concurrent HTTP connections for Chat was configured to the maximum. CPU and RAM usage were both under 80% when the number of maximum users was reached.
Cloud Station Server
Maximum Number of Concurrently Connected Devices	2,000
Maximum Number of Hosted Files (btrfs)	500,000
Maximum Number of Hosted Files (ext4)	500,000
Notes	The maximum number of concurrently connected devices refers to the maximum number of devices that can remain connected at the same time. The maximum number of hosted files refers to the maximum number of files that can be indexed and hosted by the Cloud Station Server service. RAM expansion was not used during testing. Non-encrypted shared folders were used during the aforementioned testing.
Document Viewer
Download Station
Maximum Concurrent Download Tasks	80
exFAT Access (optional)
MailPlus / MailPlus Server
Free Email Accounts	5 (Licenses required for additional accounts)
Maximum number of concurrent users	Up to 100
Maximum Server Performance	1,052,000 emails per day, approx. 32GB
Notes	The CPU and RAM usage were both under 80% when testing the maximum number of concurrent users. Read-write SSD cache was enabled in 5-bay (and above) NAS models with 2 SSDs units installed. The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server
DLNA Compliance
Moments
Facial recognition
Subject recognition
Auto Color & Rotate
Moments Select
Snapshot Replication
Maximum Snapshots per Shared Folder	1024
Maximum of system snapshots	65536
Surveillance Station
Maximum IP cam (Licenses required)	40 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)*	1200 FPS @ 720p (1280x720) 840 FPS @ 1080p (1920×1080) 550 FPS @ 3M (2048x1536) 300 FPS @ 5M (2591x1944) 180 FPS @ 4K (3840x2160)
Total FPS (H.265)*	1200 FPS @ 720p (1280x720) 1200 FPS @ 1080p (1920×1080) 900 FPS @ 3M (2048x1536) 550 FPS @ 5M (2591x1944) 300 FPS @ 4K (3840x2160)
Total FPS (MJPEG)*	720 FPS @ 720p (1280x720) 500 FPS @ 1080p (1920×1080) 330 FPS @ 3M (2048x1536) 200 FPS @ 5M (2591x1944)
Notes	Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Synology Drive
Recommended Number of Hosted Files	500,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Recommended Number of Concurrent Connections for PC Clients	450 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Notes	Exceeding the limits above may result in longer response time in file operations. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office
Maximum Users	1,800
Notes	Multiple files were opened for testing and each file was edited by 30 users simultaneously. CPU and RAM usage were both under 80% when the number of maximum users was reached. For tested models with expandable memory, the maximum amount of RAM was installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video Station
Video Transcoding	4K Group 1 (See more)
Maximum Transcoding Channel Number	2 channel, 30 FPS @ 4K (4096 x 2160), H.264 (AVC)/H.265 (HEVC) or 2 channel, 30 FPS @ 1080p (1920×1080), H.264 (AVC)/H.265 (HEVC)/MPEG-2/VC-1
Virtual Machine Manager
Recommended Virtual Machine Instances	4 (Learn more)
Recommended Virtual DSM Number (Licenses required)	4 (including 1 Free License)
Notes	Virtual Machine Manager is not supported on hosts running Synology High Availability. The specifications vary depending on system configuration and memory size.
VPN Server
Maximum Connections	30
Environment & Packaging
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1
Optional Accessories	Surveillance Device License Pack D3NS1866L-4G DDR3 non-ECC SO-DIMM Expansion Unit: DX517 X 1 VS360HD VS960HD
